Submissions¶

Submit a Grouping to a TAXII Server¶

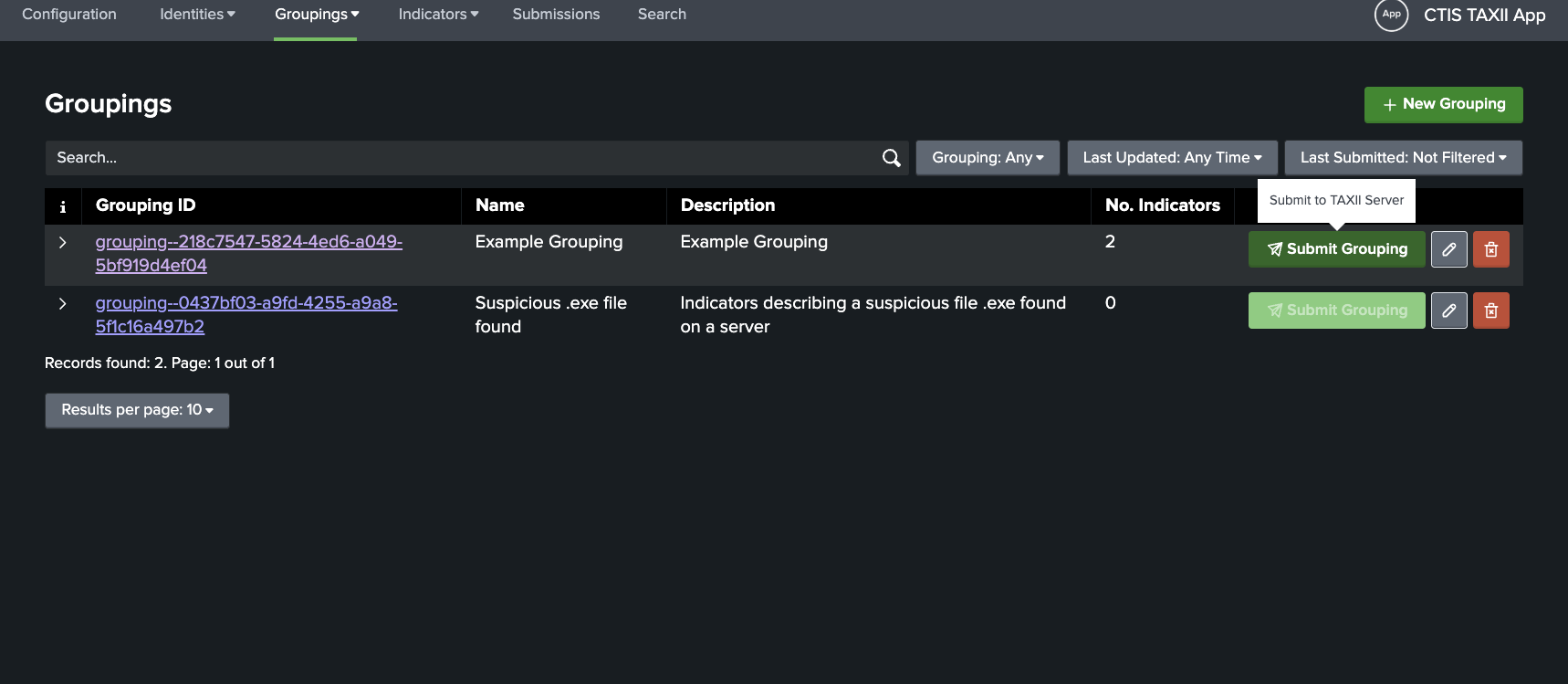

To initiate a submission of a Grouping to a TAXII server, click on the Submit Grouping button in the Grouping's row. Note that you will not be able to submit a Grouping which has no associated Indicators.

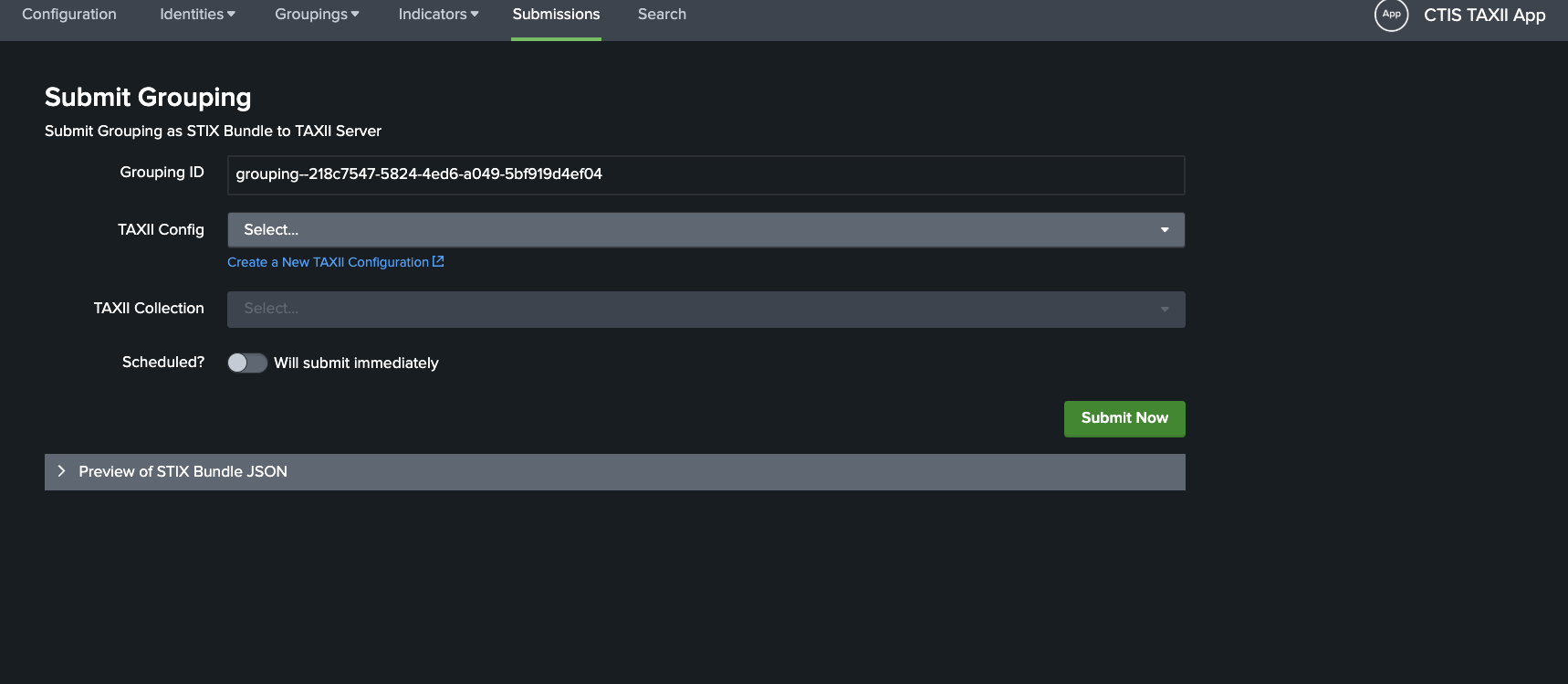

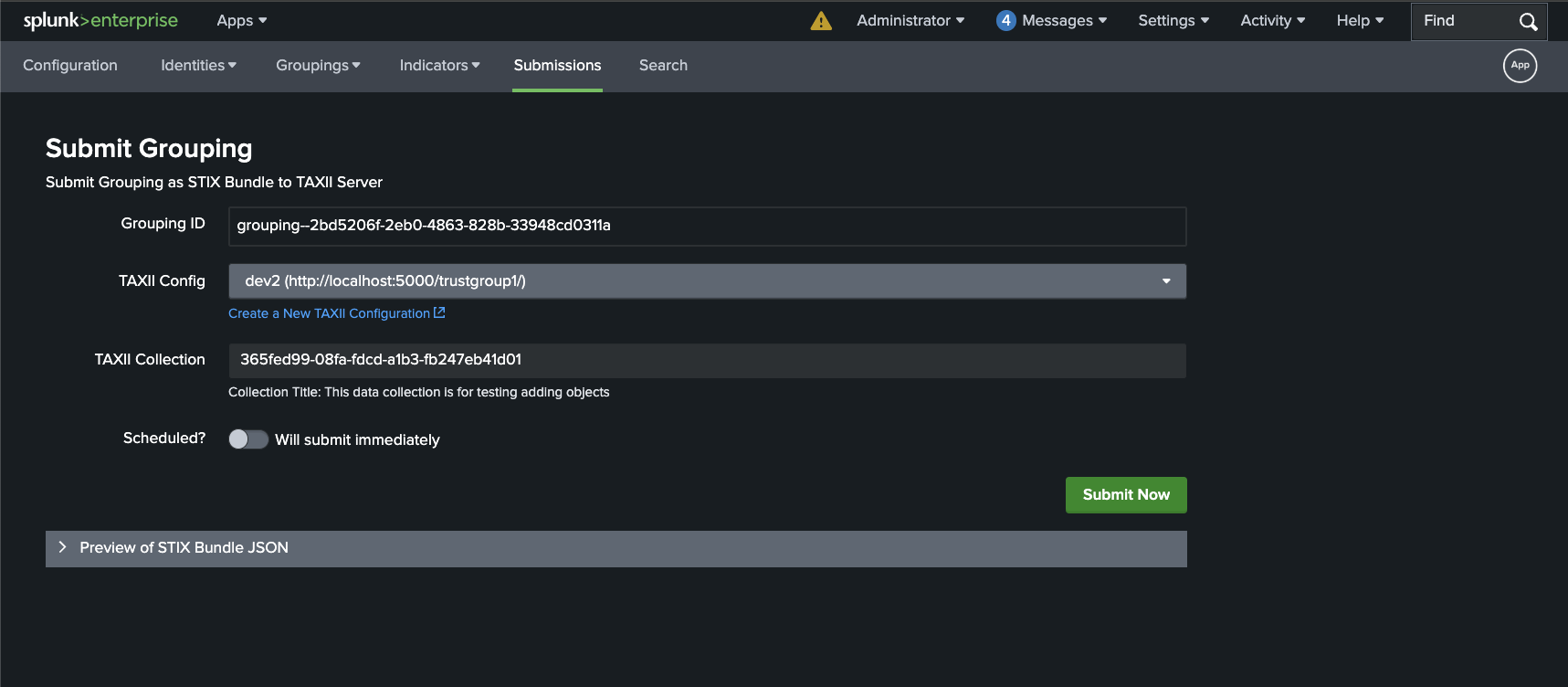

You will be taken to the Submit Grouping page where you can fill in the details for the submission.

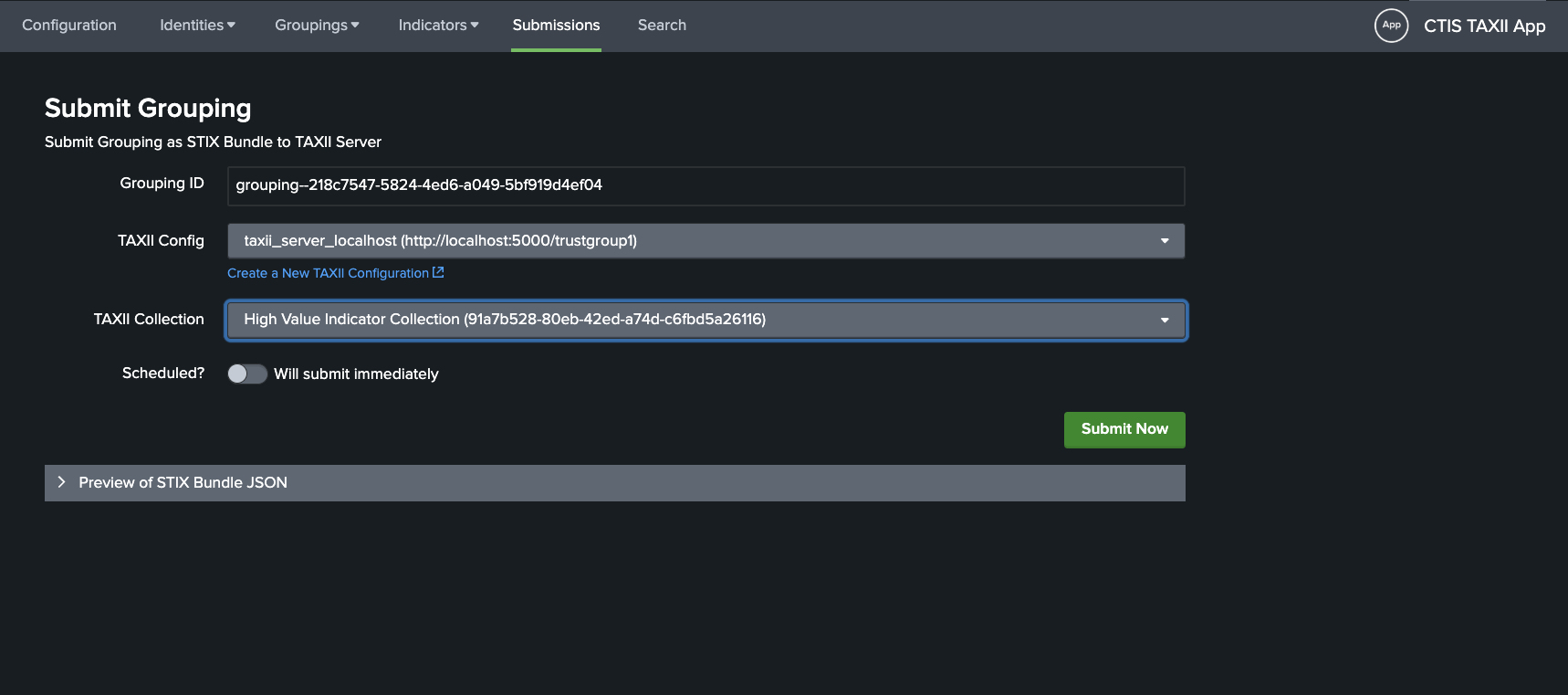

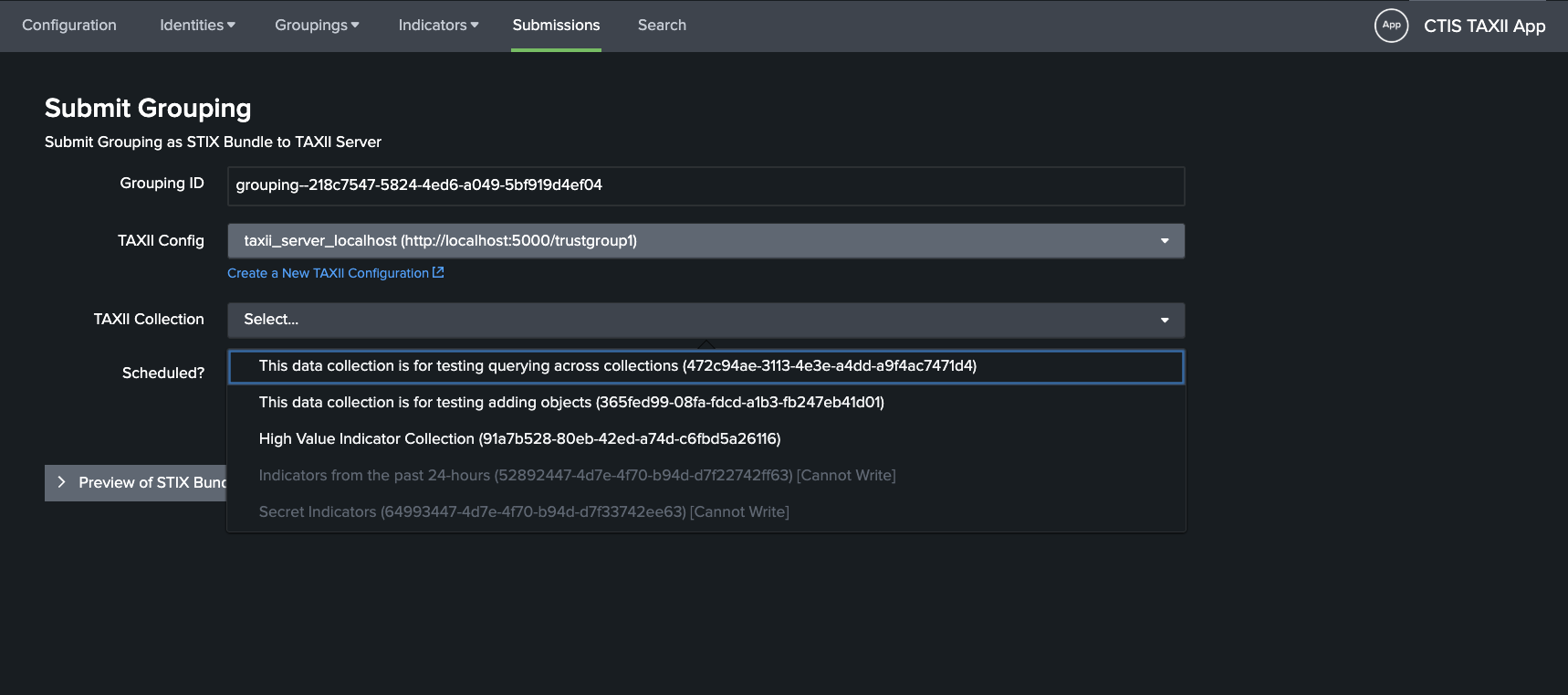

After choosing an existing TAXII server configuration, you need to select a collection to submit the Grouping to. Note that collections which you do not have write permission for will be greyed out.

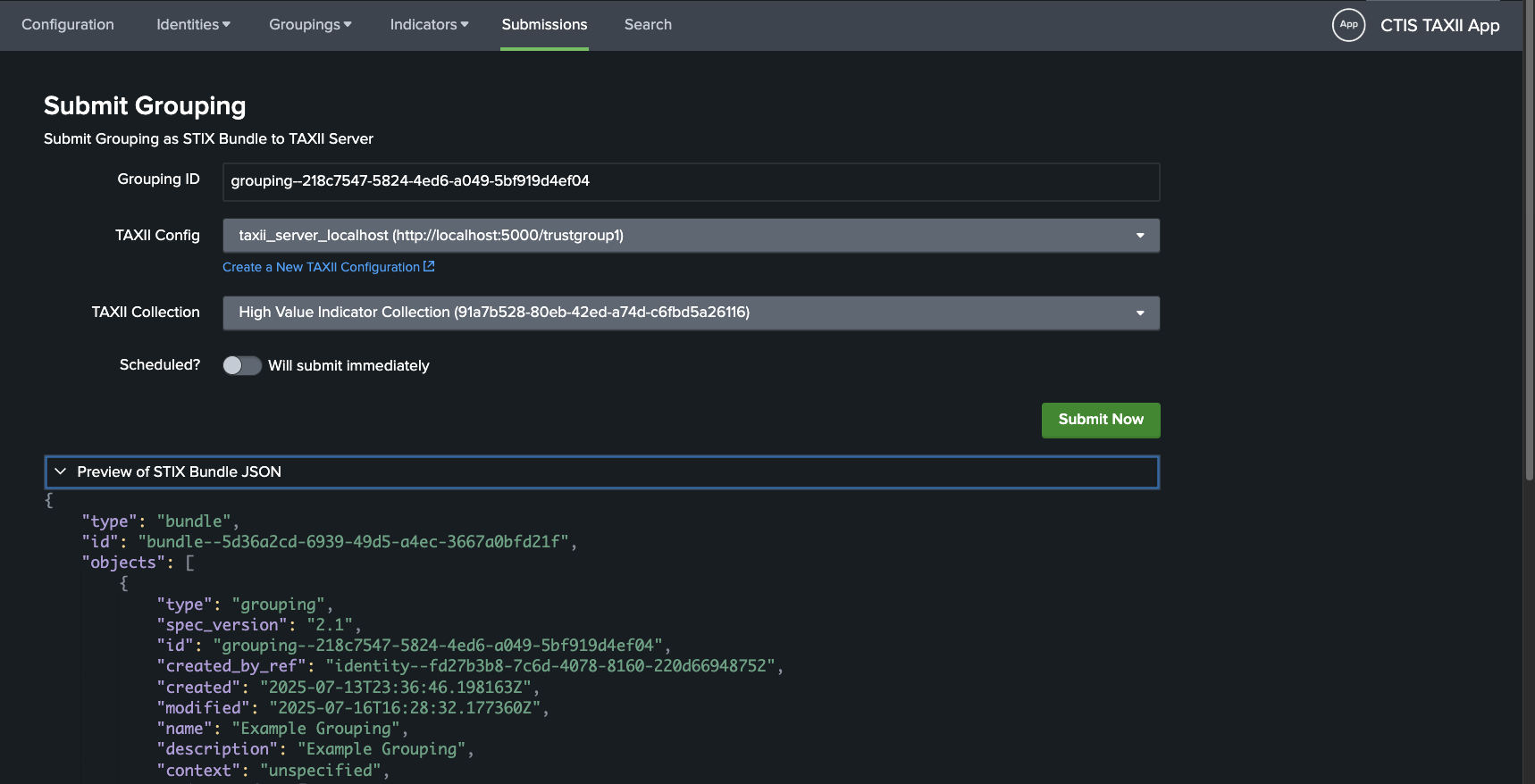

If you would like to, you can preview the STIX Bundle JSON payload that will be submitted to the TAXII server. Click on the Preview of STIX Bundle Payload button to expand the preview.

Submit Immediately¶

If you would like to submit the Grouping now, click on the Submit Now button.

This will trigger a POST request from the Splunk server to the Add Objects endpoint, with the STIX Bundle JSON as payload.

You will be redirected to a page to view the submission. This which will show whether the submission was successful or not.

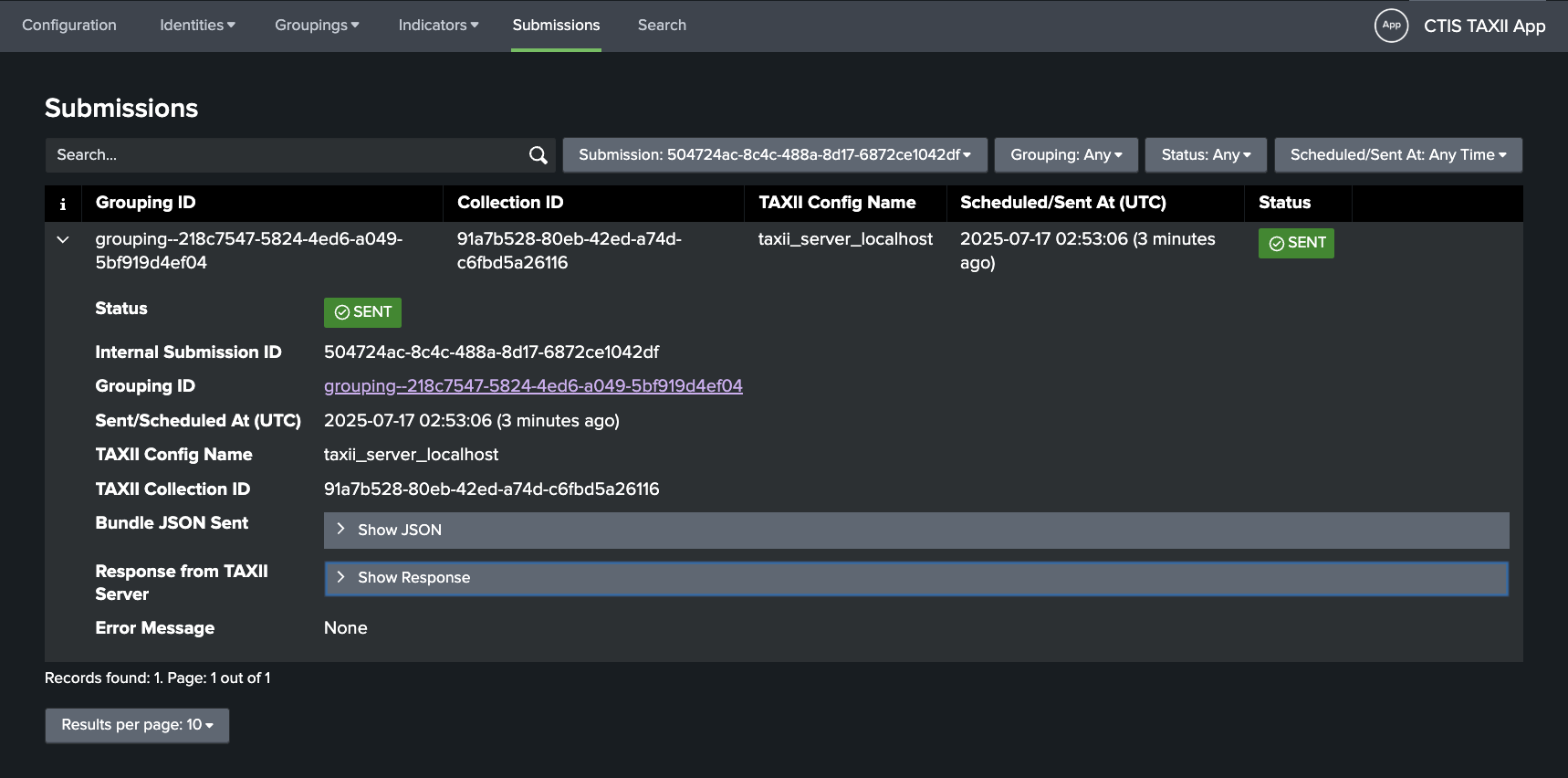

An example successful submission may look like this:

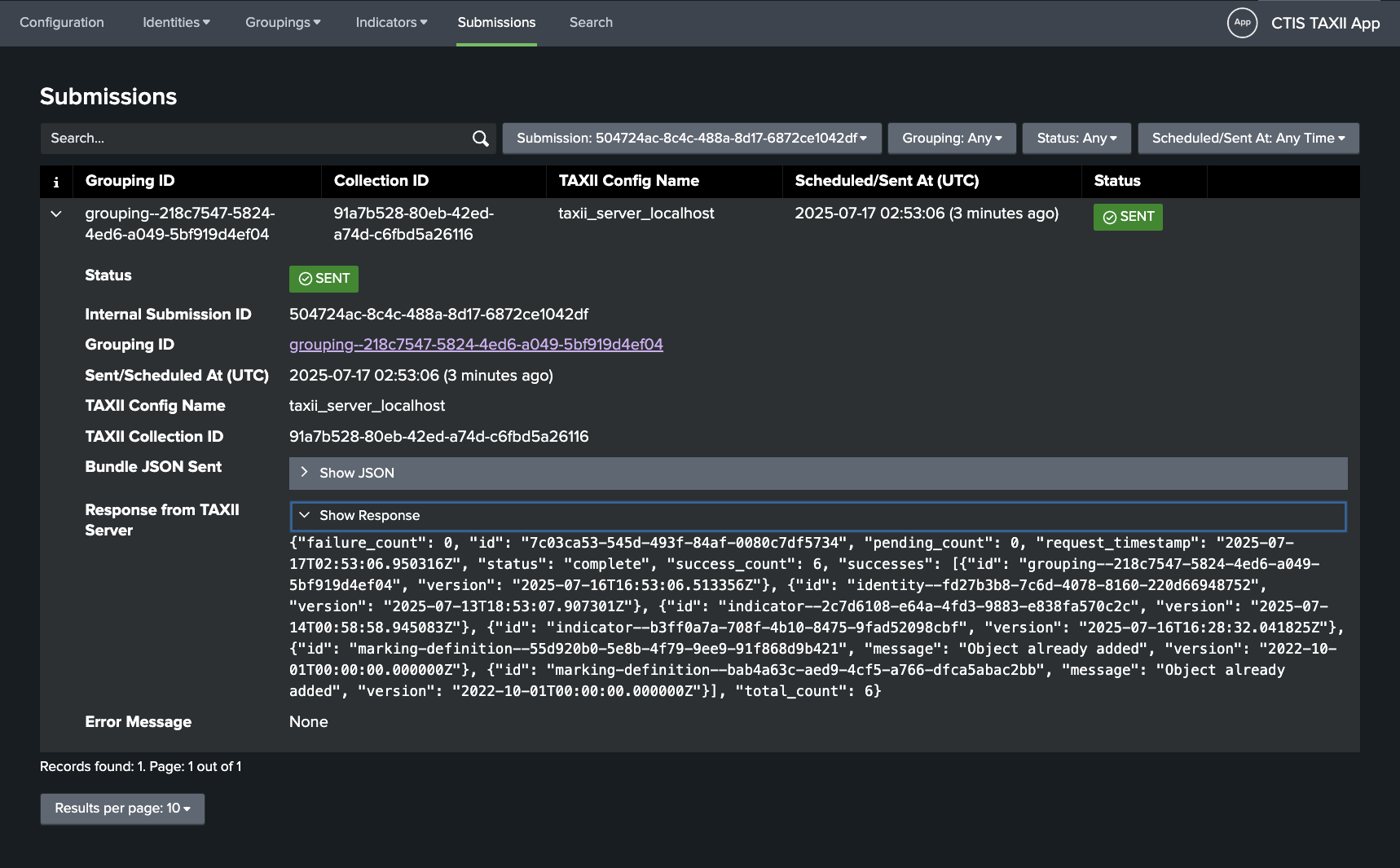

You can see the TAXII server's response by exapnding the Show Response section:

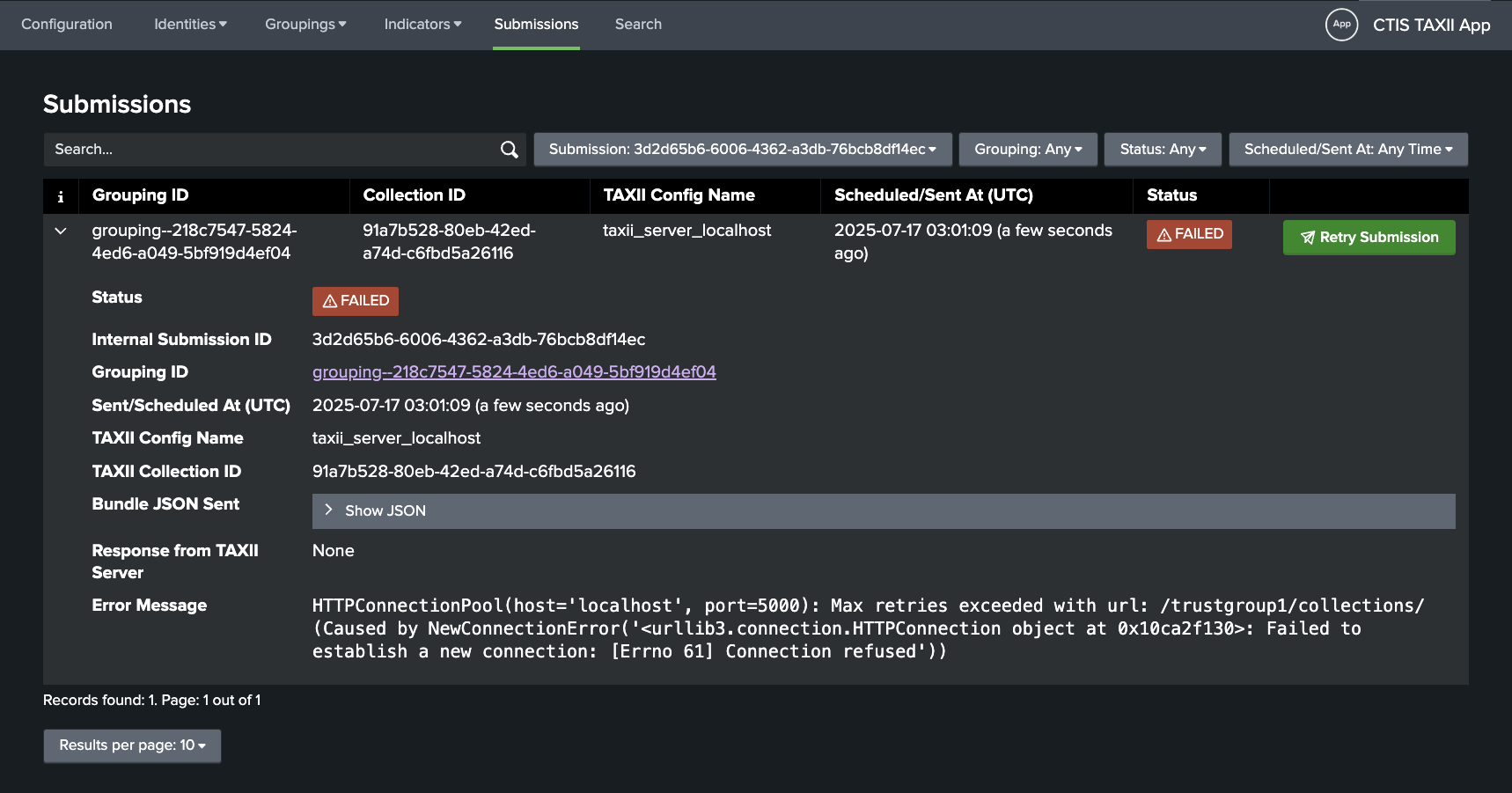

An example failed submission may look like this:

Scheduled Submission¶

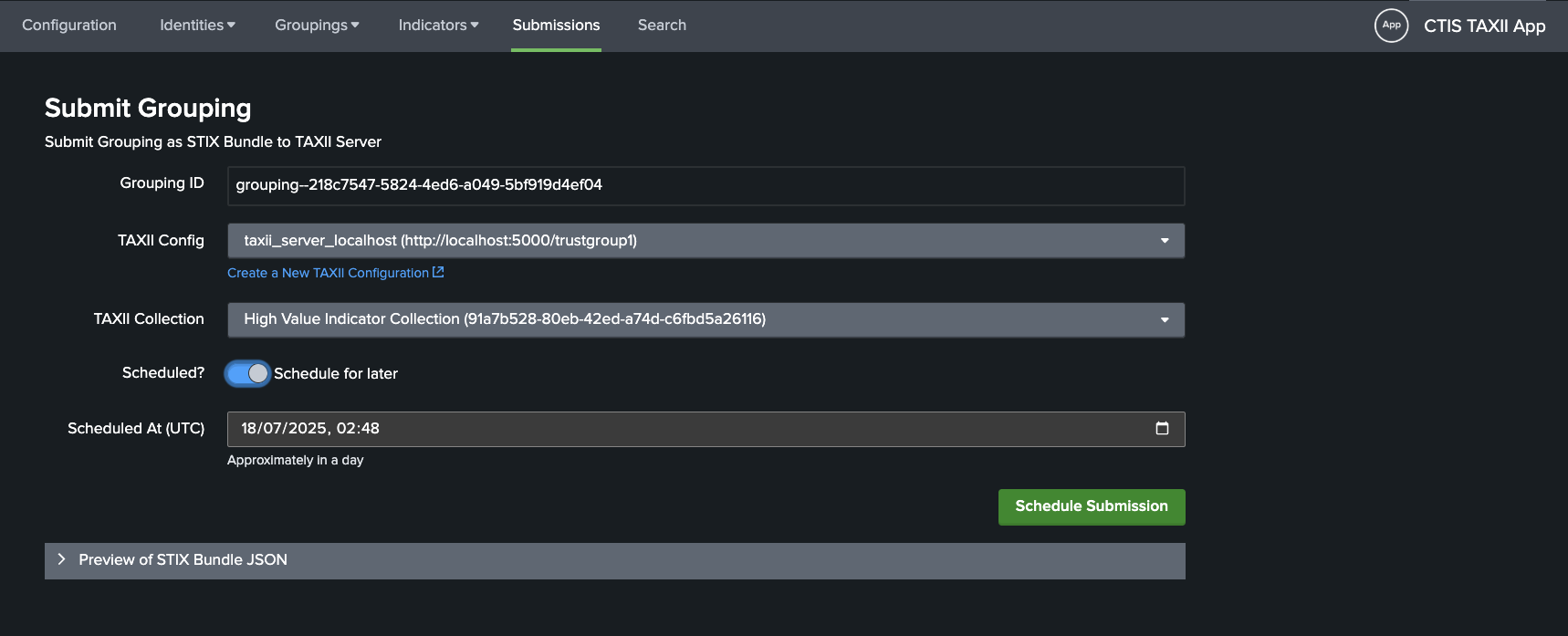

If you would like to schedule the submission for a later time, toggle the switch labelled Scheduled? as enabled. This will display a date and time picker to select the submission time.

Once you have selected the time, click on the Schedule Submission button to schedule the submission.

Note that the scheduled Splunk saved search called ctis_taxii_scheduler handles the submission of scheduled submissions. You can adjust the cron_schedule of this saved search as needed. By default, this job runs every minute.

Therefore, the Scheduled At (UTC) datetime is the earliest at which the submission will be made.

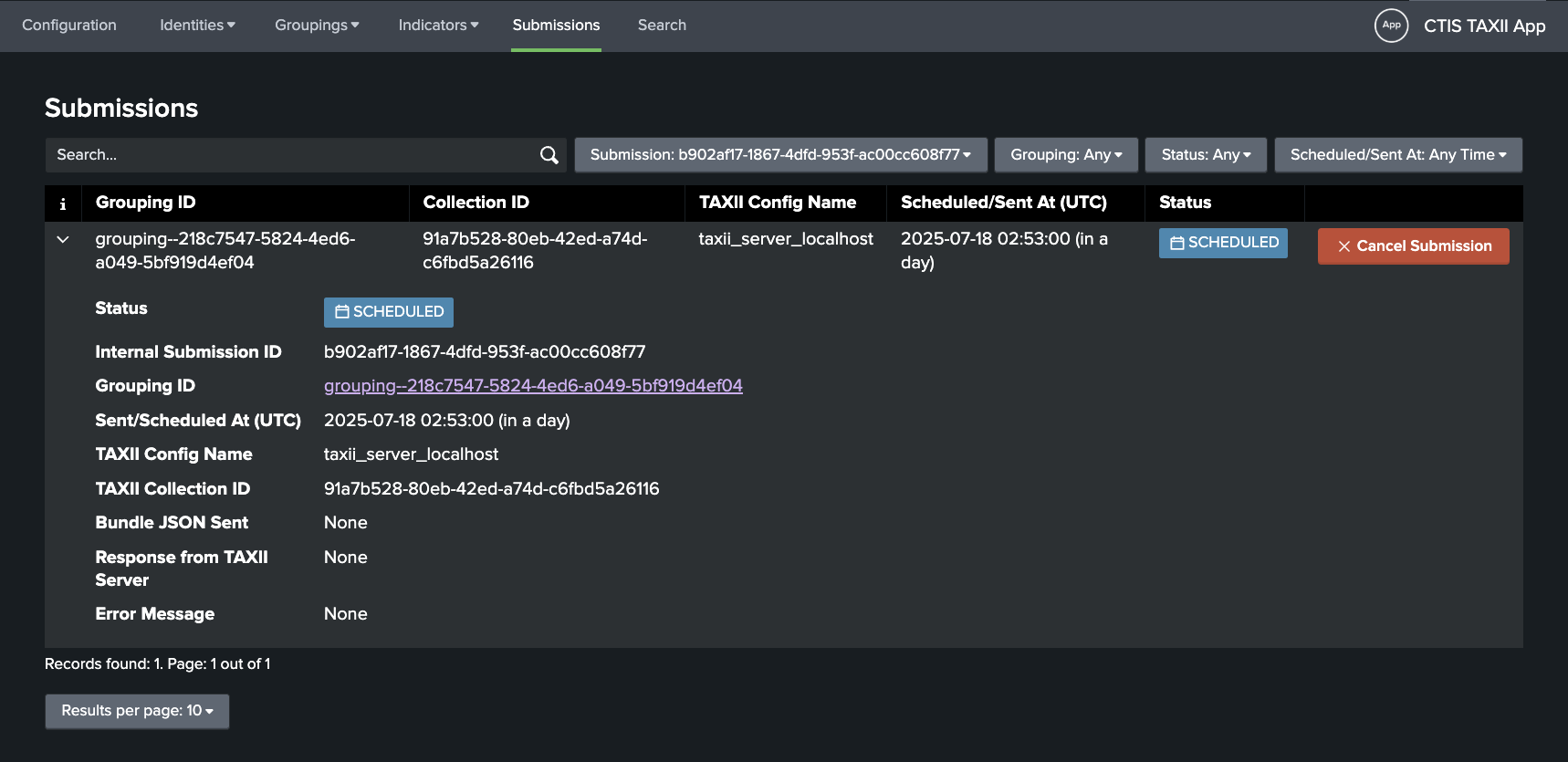

Cancel a Scheduled Submission¶

To cancel a scheduled submission, click on the Cancel Submission button in the Grouping's row. You will be prompted to confirm the cancellation.
