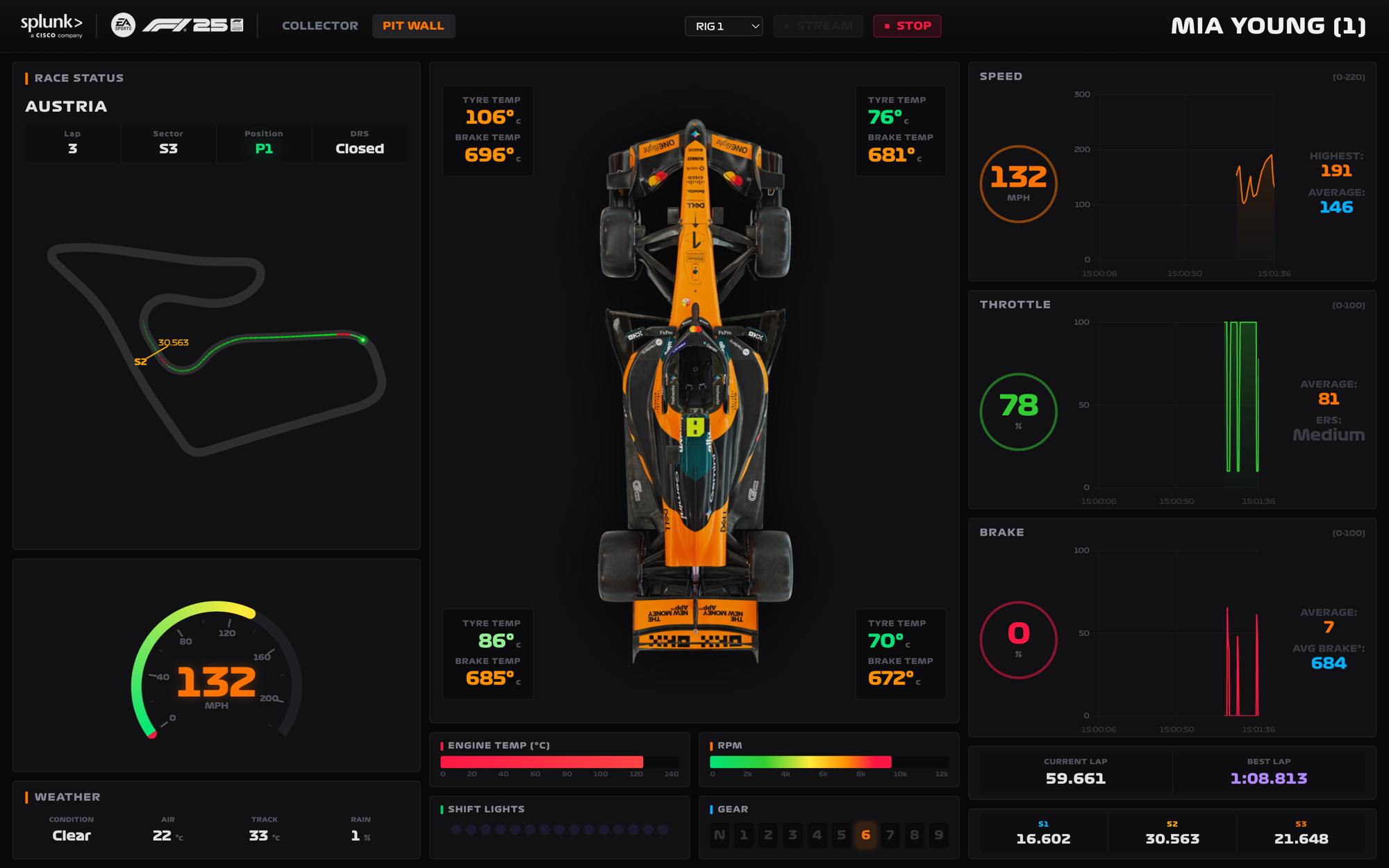

The Pit Wall at /pitwall is a broadcast-style live telemetry view for a single rig. It is designed for a display screen behind the booth rather than for the operator.
Using it
- Open Pit Wall from the navigation.
- Choose the rig to follow from the selector in the header.
- Select STREAM.
The driver’s name is shown at the top right. STOP ends the stream; changing the selected rig switches which car is displayed.
The Pit Wall requires a tablet or desktop browser. On narrow screens it shows a message instead of the layout.
What it shows
| Panel | Contents |
|---|---|
| Race Status | Track name, lap, sector, position, DRS state |
| Track map | The car’s path around the circuit with live sector timing |
| Speed gauge | Current speed in the configured display unit |
| Weather | Condition, air and track temperature, rain percentage |
| Car view | Per-corner tyre and brake temperatures |
| Engine Temp / RPM | Live bar readouts |
| Shift Lights / Gear | Current shift-light state and selected gear |
| Speed / Throttle / Brake | Rolling charts with current, highest, and average values, plus ERS mode |
| Lap timing | Current lap, best lap, and S1/S2/S3 sector times |
Notes
- The Pit Wall reads the same telemetry stream as the Collector page. It does not change what is delivered to Splunk, and streaming to it is not required for collection.
- It works identically with Playback Mode, which makes it a good way to test a booth display before an event.
- Speed follows the Speed Display setting under Config → General.
