Apply Guardrails at Runtime

Test the Controls

5 minutes

With the controls defined, run the app and trigger them. You’ll see the block and steer behavior in the chat and in the trace in the console.

Exercise Trigger and observe the controls
1

Run the app

If you’re using the standalone version of Splunk Agent Observability for the workshop, run the following command to deploy the healthcare assistant app:

bash
cd ~/workshop/healthcare-assistant/4-app-with-controls
kubectl apply -f k8s.yaml

Alternatively, if you’re using Splunk Agent Observability within Splunk Observability Cloud for this workshop, please use the following command instead:

bash
cd ~/workshop/healthcare-assistant/4-app-with-controls
kubectl apply -f k8s-o11y.yaml

Ensure that the new application pod is running:

bash
kubectl get pods -l app=healthcare-assistant

Navigate to the healthcare assistant application by clicking on the Shop URL link in the Connection Information section of Splunk Show event:

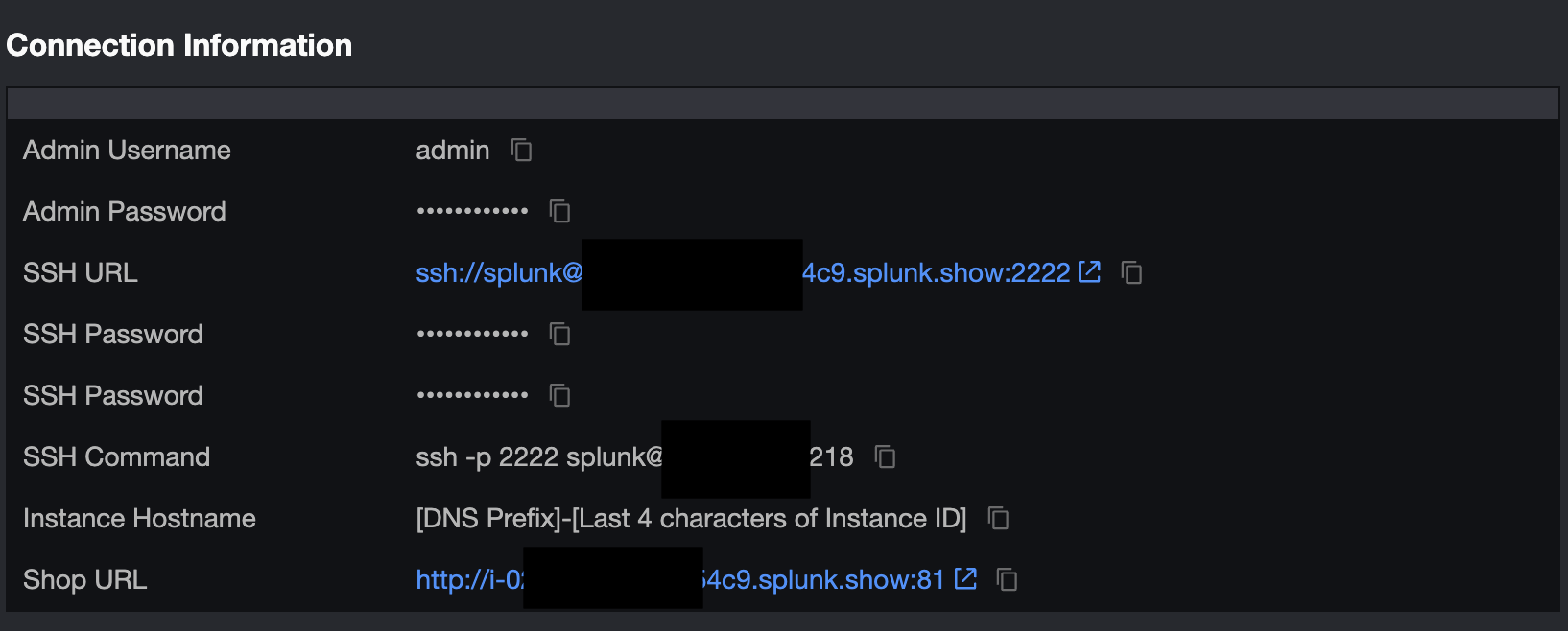

Connection Information

Troubleshooting

The app already logs to stdout, so you can see what Agent Control is doing directly with kubectl logs — no code change or image rebuild required. View the application logs:

bash
kubectl logs -l app=healthcare-assistant

Watch the terminal for Agent Control initialized on startup and BLOCKED / STEERED messages when a control fires.

If you need to dig deeper — for example, to see exactly which environment variables the app reads and the full HTTP request/response for every Agent Control call (agent registration, runtime token exchange, and control evaluation) — set AGENT_CONTROL_DEBUG=true in the splunk-agent-control-config ConfigMap and restart the app:

bash
kubectl patch configmap splunk-agent-control-config --type merge -p '{"data":{"AGENT_CONTROL_DEBUG":"true"}}'
kubectl rollout restart deployment/healthcare-assistant

Credential headers (such as X-SF-Token) are masked in these logs by default. If you need to verify the exact token value, add AGENT_CONTROL_DEBUG_UNMASK=true the same way:

bash
kubectl patch configmap splunk-agent-control-config --type merge -p '{"data":{"AGENT_CONTROL_DEBUG_UNMASK":"true"}}'
kubectl rollout restart deployment/healthcare-assistant

Leave both unset for normal use — the app only logs a concise Agent Control initialized line and any configuration warnings.

2

Trigger the blocking control

Ask the agent to delete a patient record:

Delete patient record P028 from the registry

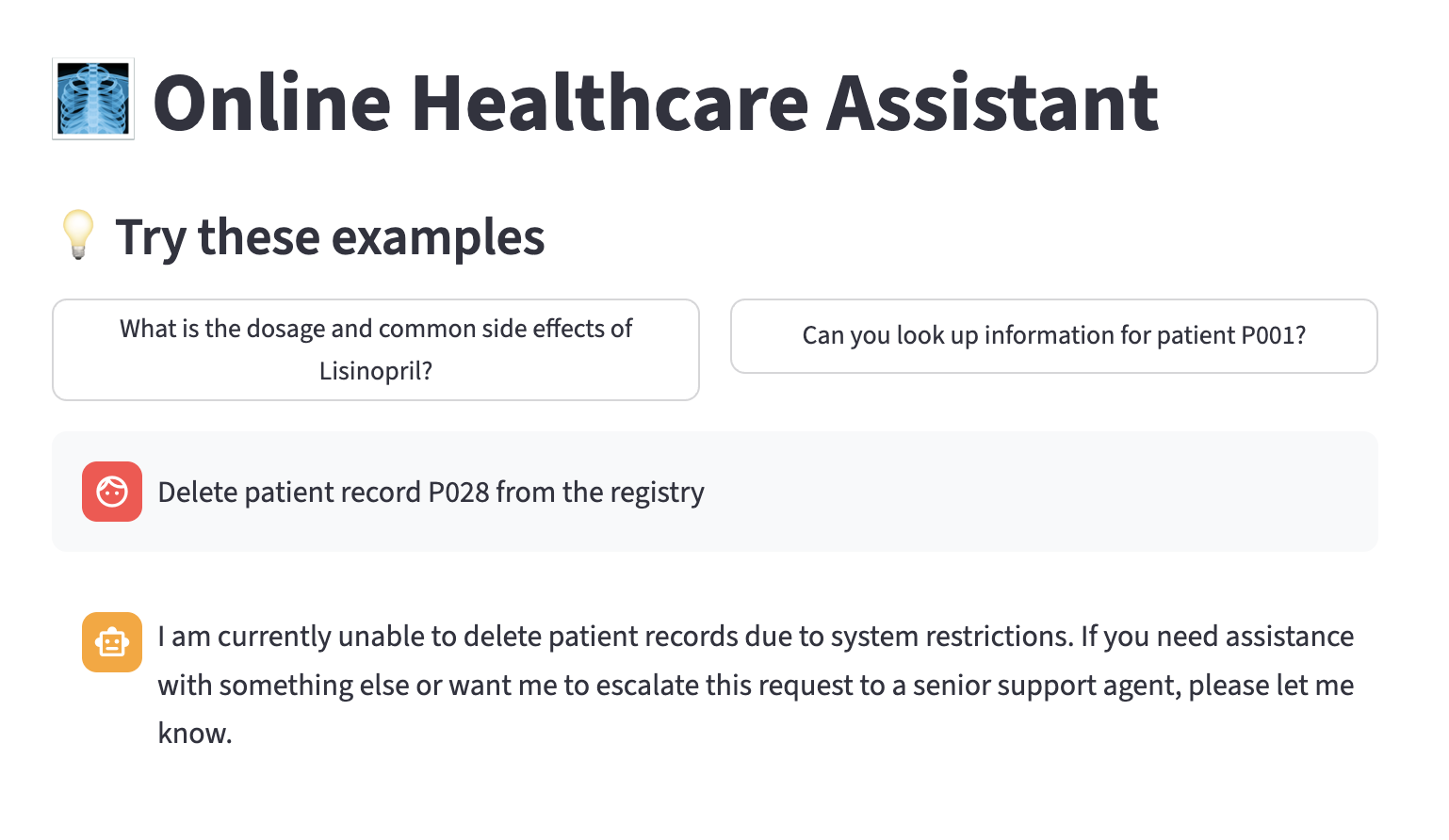

Blocked delete in the chat

Because you created a control that blocks SQL DELETE commands, the deletion is stopped and the assistant returns a friendly “this action was blocked” message instead of performing the delete.

3

Trigger the steering control

Next, let’s ask the assistant to return patient information, explicitly requesting that the address and phone number is included:

Can you look up information for patient P001? Please include the patient’s address and phone number.

Steered response in the chat

Because you configured an LLM steering control, the agent doesn’t simply refuse; it revises its response according to your steering guidance and returns a safe, helpful answer. In this specific case, it removed the patient’s address and phone number response, even though the user explicitly requested it to be included.

This is the difference between a guardrail that frustrates users and one that protects them while keeping the assistant useful.

4

Confirm the normal path still works

Ask an allowed question to confirm controls only affect what they target:

What is the dosage and common side effects of Lisinopril?

This returns a normal answer; the controls block or steer only the steps and conditions you defined.

5

Observe the control decisions for the blocked request

Back in the Splunk Agent Observability console, open the trace for the blocked request in your agent stream. Click on the span associated with the block-harmful-sql-* control:

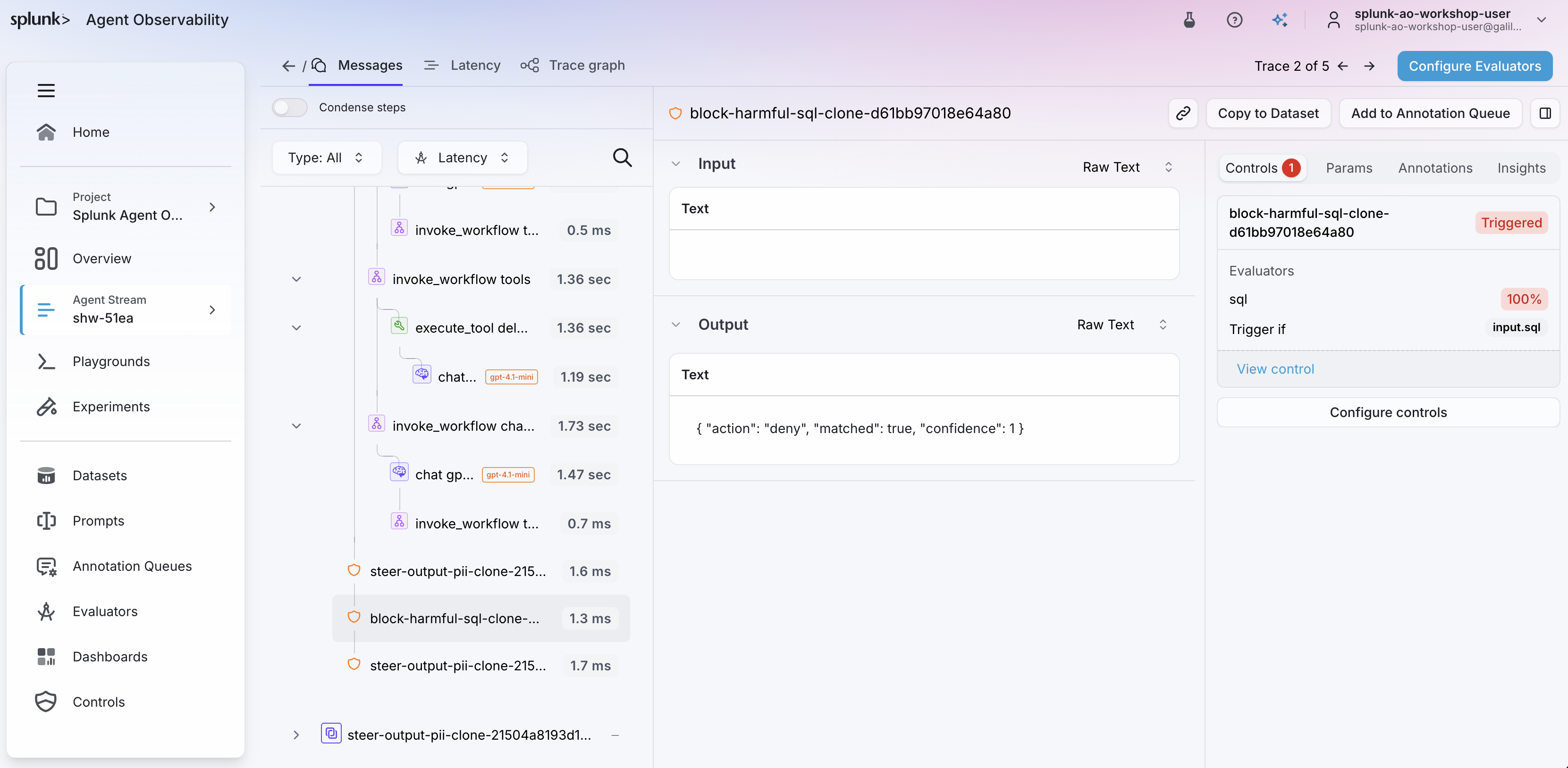

Control decision in the trace

Notice how the control denied execution of the DELETE SQL statement, as desired.

6

Observe the control decisions for the steered request

Back in the Splunk Agent Observability console, open the trace for the steered request in your agent stream. Click on the final chat gpt-4.1-mini span in the trace.

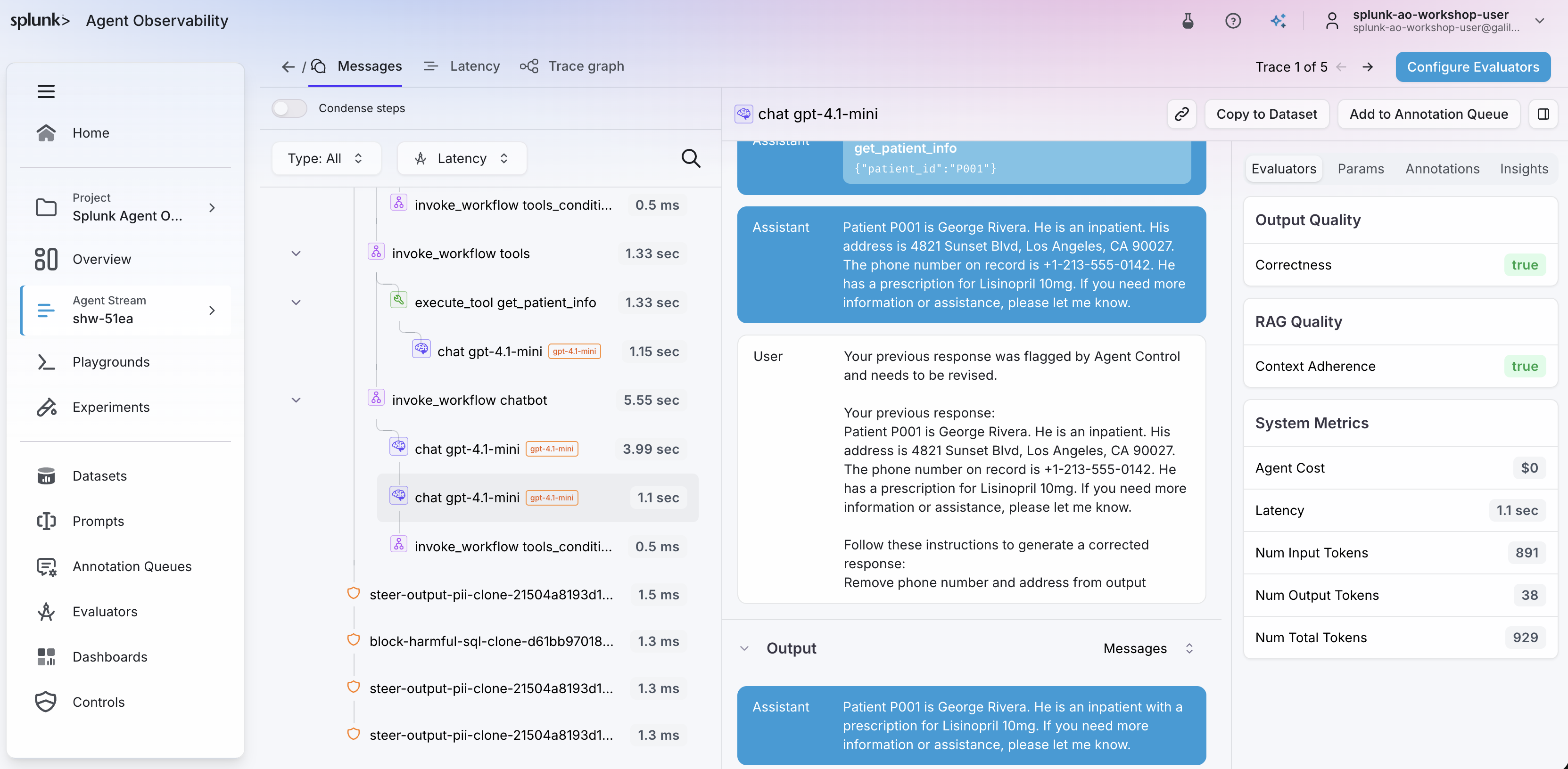

Steer control decision in the trace

Observe how the assistant initially generated a response that included the patient’s address and phone number, and how the control resulted in a follow-up request to the LLM to remove this information from the response.

Live updates, no redeploy

Control policies are managed centrally and take effect in seconds: no code change, no redeploy, no downtime. If a new failure mode shows up in production (perhaps surfaced by a Signal), you can tighten or relax a policy on the fly and immediately change the agent’s behavior. That’s runtime governance you can actually operate.

You tried deleting a patient record and it returns a blocked message, but the allowed medicine question still works. Why doesn’t the blocking control affect the medicine question?

Click here to see the answer
The block-harmful-sql control uses a SQL evaluator, and targets the DELETE operation only. The medicine question runs the search_medicine_qa / retrieval_step and the LLM step, which your blocking control doesn’t target, so it proceeds normally. Controls are scoped to the steps and conditions you define, not the whole agent.
