1. Real Browser Test

1.1 Recording a test

3 min

Open the starting URL

Open the starting URL for the workshop in Chrome. Click on the appropriate link below to open the site in a new tab.

Note

The starting URL for the workshop is different for EMEA and AMER/APAC. Please use the correct URL for your region.

https://online-boutique-eu.splunko11y.com/

Open the Chrome DevTools Recorder

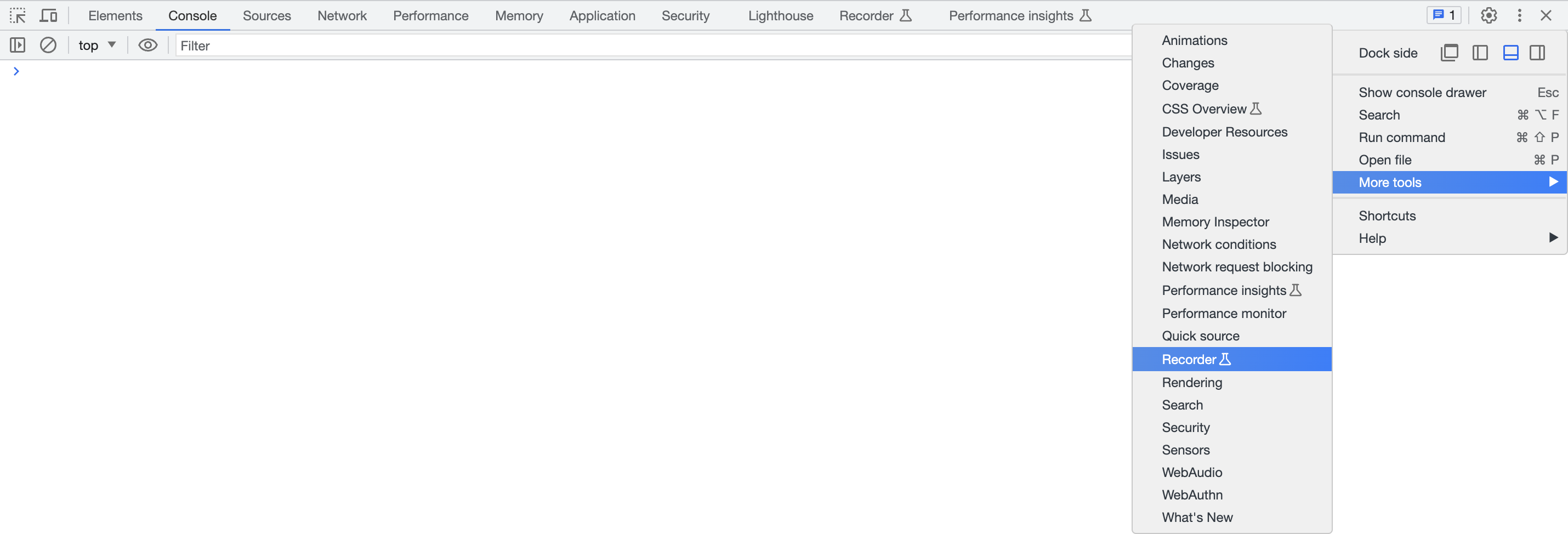

Next, open the Developer Tools (in the new tab that was opened above) by pressing Ctrl + Shift + I on Windows or Cmd + Option + I on a Mac, then select Recorder from the top-level menu or the More tools flyout menu.

Open Recorder

Note

Site elements might change depending on viewport width. Before recording, set your browser window to the correct width for the test you want to create (Desktop, Tablet, or Mobile). Change the DevTools “dock side” to pop out as a separate window if it helps.

Create a new recording

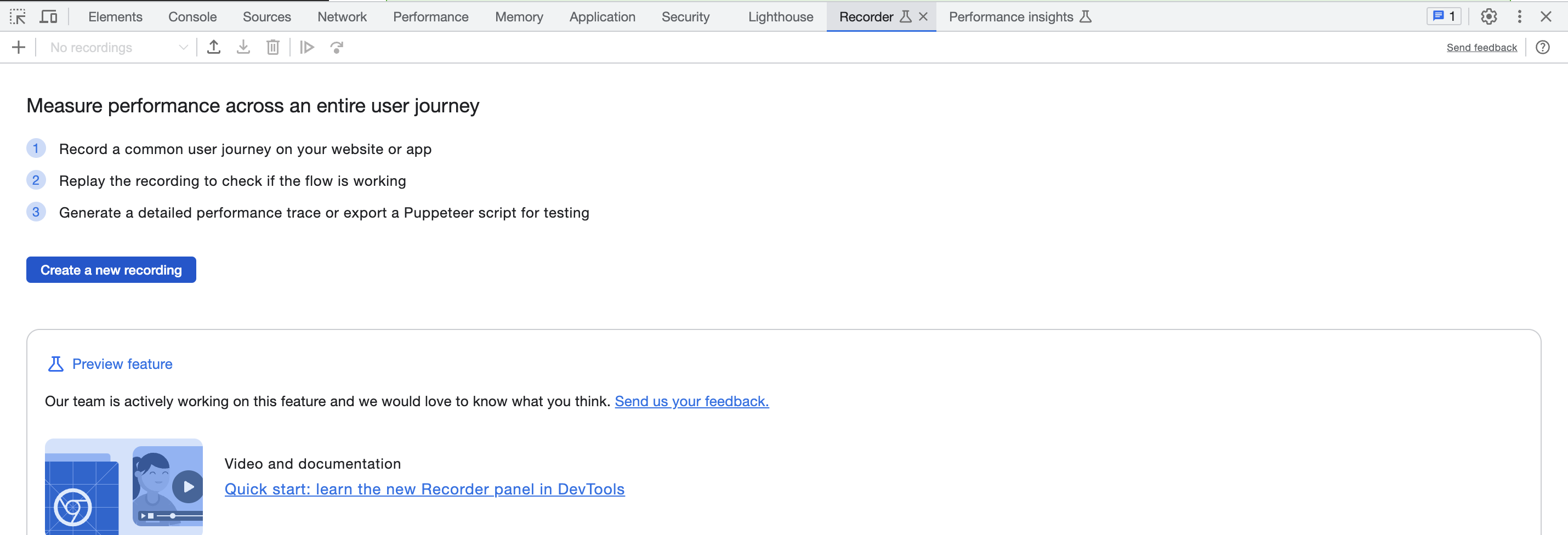

With the Recorder panel open in the DevTools window. Click on the button to start.

Recorder

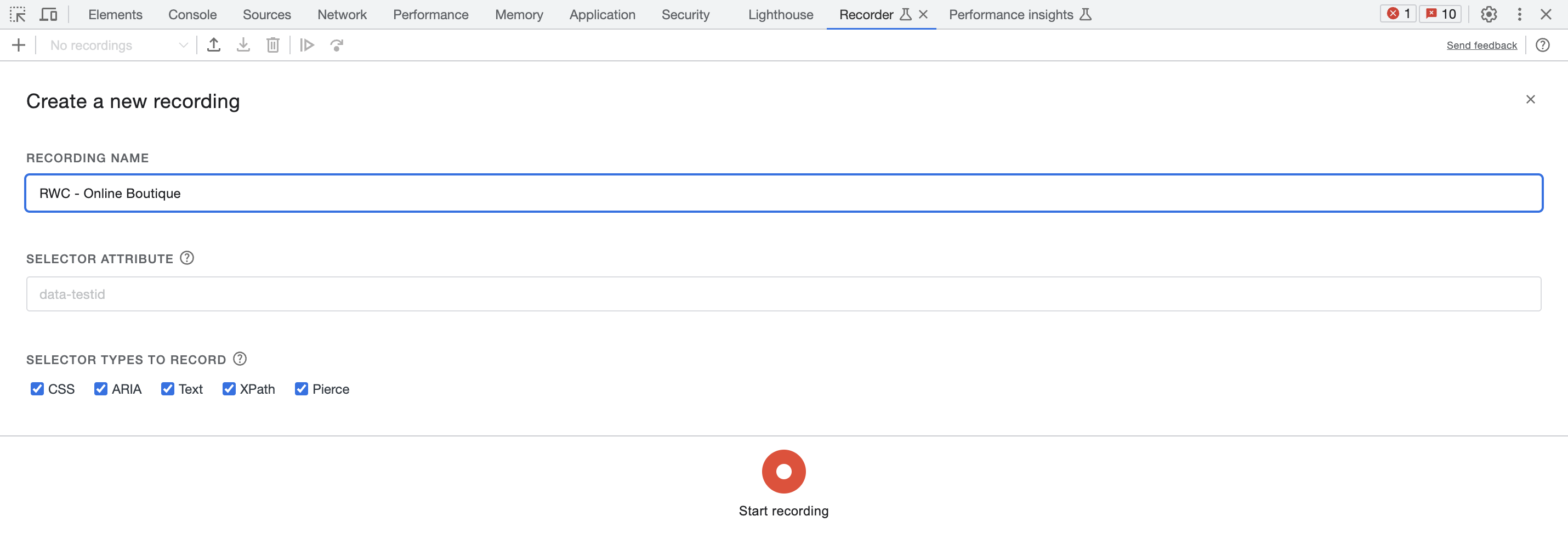

For the Recording Name use your initials to prefix the name of the recording e.g. <your initials> - Online Boutique. Click on Start Recording to start recording your actions.

Recording Name

Now that we are recording, complete the following actions on the site:

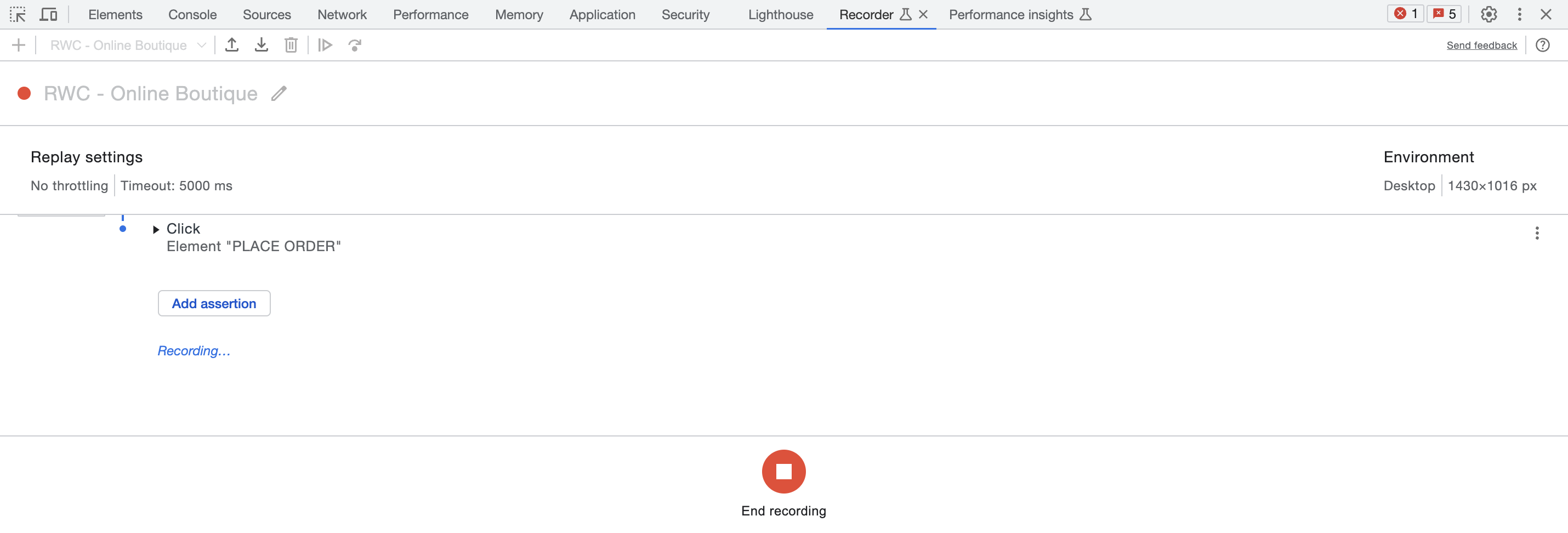

End Recording

Exporting the recording

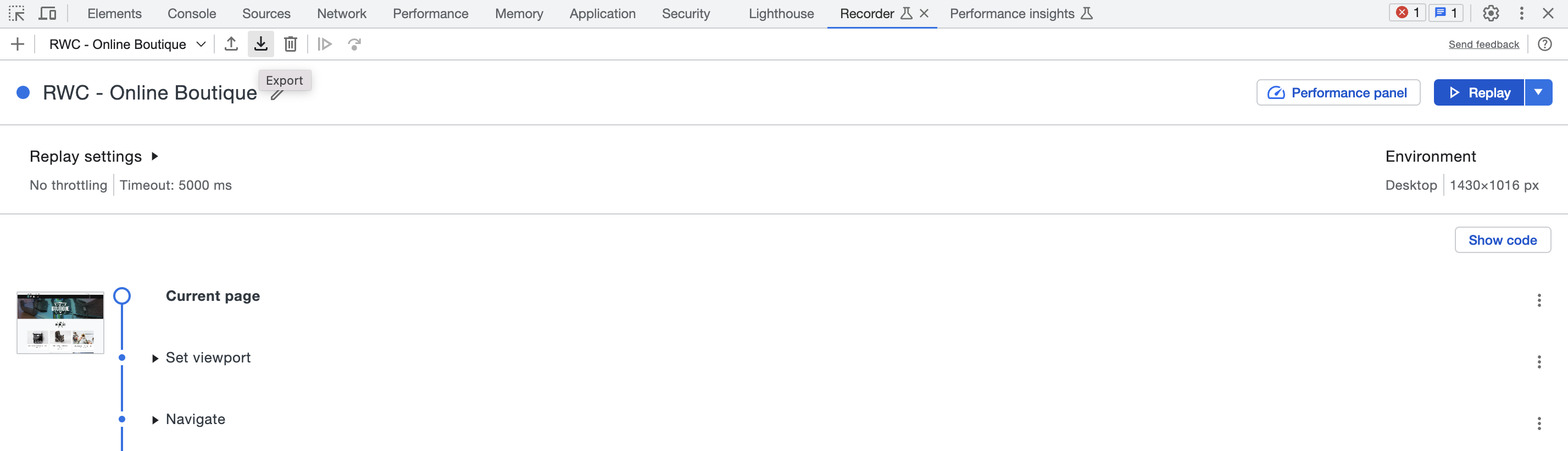

Click on the Export button:

Export button

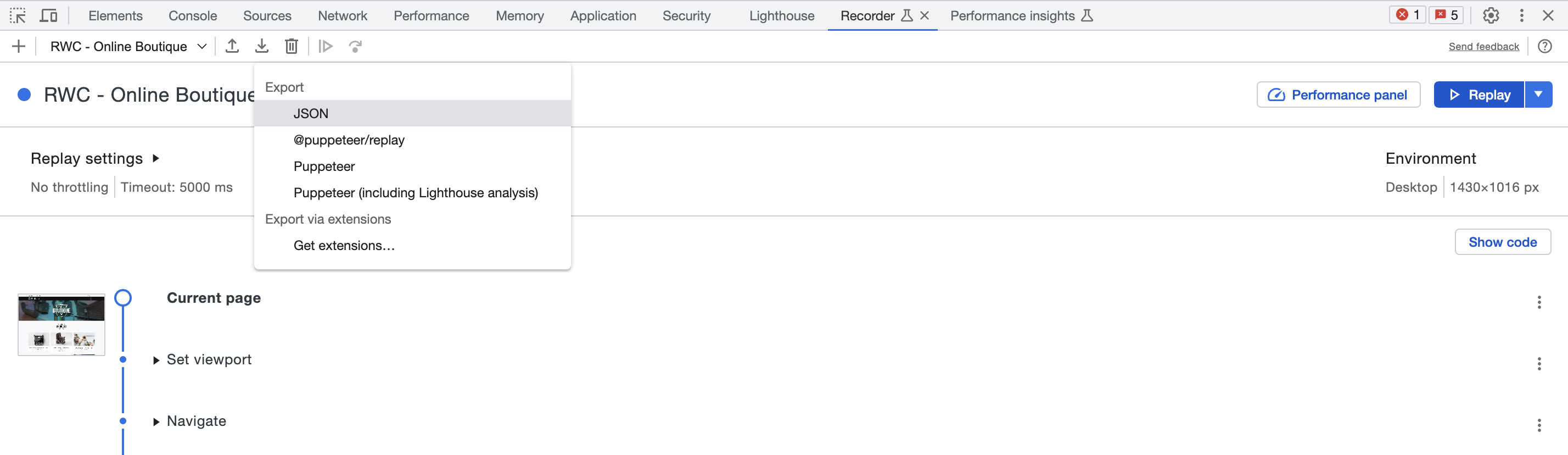

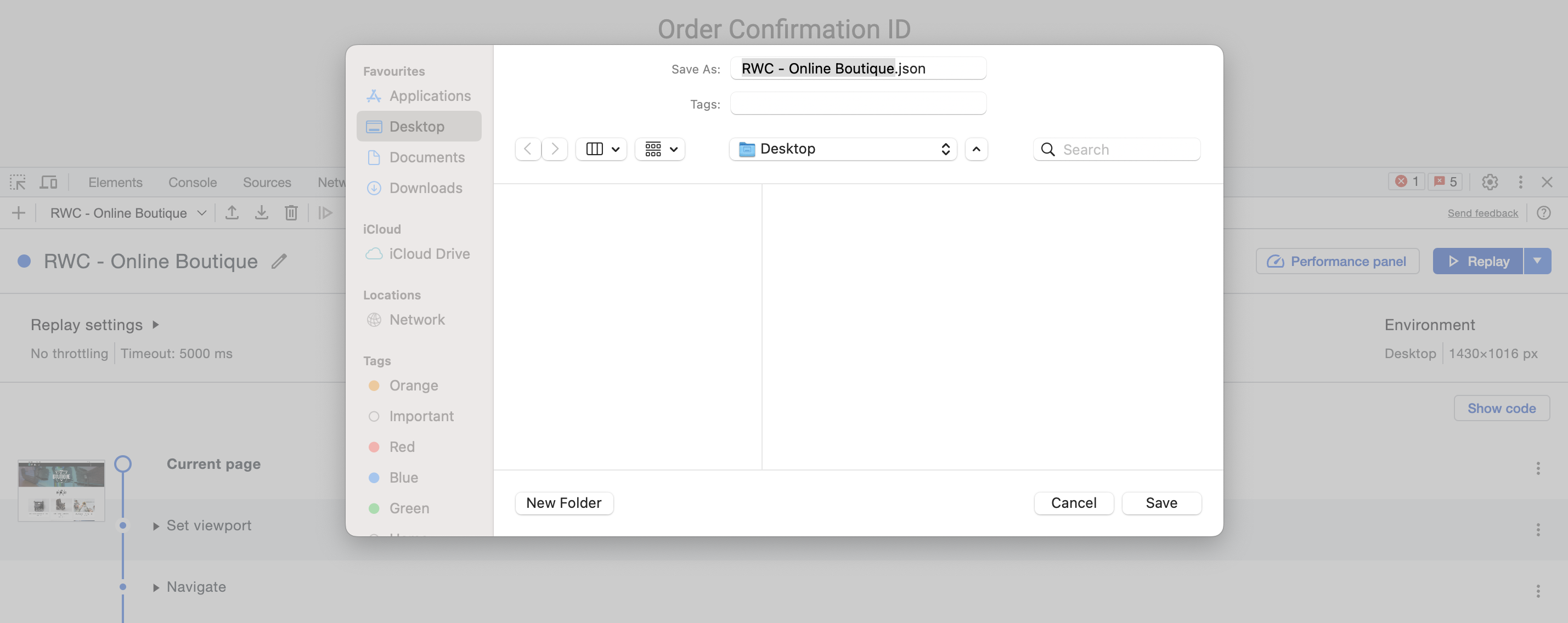

Select JSON as the format, then click on Save

Export JSON

Save JSON

Congratulations! You have successfully created a recording using the Chrome DevTools Recorder. Next, we will use this recording to create a Real Browser Test in Splunk Synthetic Monitoring.

Click here to view the JSON file
json
{
    "title": "RWC - Online Boutique",
    "steps": [
        {
            "type": "setViewport",
            "width": 1430,
            "height": 1016,
            "deviceScaleFactor": 1,
            "isMobile": false,
            "hasTouch": false,
            "isLandscape": false
        },
        {
            "type": "navigate",
            "url": "https://online-boutique-eu.splunko11y.com/",
            "assertedEvents": [
                {
                    "type": "navigation",
                    "url": "https://online-boutique-eu.splunko11y.com/",
                    "title": "Online Boutique"
                }
            ]
        },
        {
            "type": "click",
            "target": "main",
            "selectors": [
                [
                    "div:nth-of-type(2) > div:nth-of-type(2) a > div"
                ],
                [
                    "xpath//html/body/main/div/div/div[2]/div[2]/div/a/div"
                ],
                [
                    "pierce/div:nth-of-type(2) > div:nth-of-type(2) a > div"
                ]
            ],
            "offsetY": 170,
            "offsetX": 180,
            "assertedEvents": [
                {
                    "type": "navigation",
                    "url": "https://online-boutique-eu.splunko11y.com/product/66VCHSJNUP",
                    "title": ""
                }
            ]
        },
        {
            "type": "click",
            "target": "main",
            "selectors": [
                [
                    "aria/ADD TO CART"
                ],
                [
                    "button"
                ],
                [
                    "xpath//html/body/main/div[1]/div/div[2]/div/form/div/button"
                ],
                [
                    "pierce/button"
                ],
                [
                    "text/Add to Cart"
                ]
            ],
            "offsetY": 35.0078125,
            "offsetX": 46.4140625,
            "assertedEvents": [
                {
                    "type": "navigation",
                    "url": "https://online-boutique-eu.splunko11y.com/cart",
                    "title": ""
                }
            ]
        },
        {
            "type": "click",
            "target": "main",
            "selectors": [
                [
                    "aria/PLACE ORDER"
                ],
                [
                    "div > div > div.py-3 button"
                ],
                [
                    "xpath//html/body/main/div/div/div[4]/div/form/div[4]/button"
                ],
                [
                    "pierce/div > div > div.py-3 button"
                ],
                [
                    "text/Place order"
                ]
            ],
            "offsetY": 29.8125,
            "offsetX": 66.8203125,
            "assertedEvents": [
                {
                    "type": "navigation",
                    "url": "https://online-boutique-eu.splunko11y.com/cart/checkout",
                    "title": ""
                }
            ]
        }
    ]
}
