Reconfigure Collector

To reconfigure the collector we need to make these changes:

In agent_config.yaml
- We need to adjust the signalfx exporter to use the gateway
- The otlp exporter is already there, so we leave it alone
- We need to change the pipelines to use otlp
In splunk-otel-collector.conf
- We need to set the SPLUNK_GATEWAY_URL to the url provided by the instructor

See this documentation page for more details.

The exporters will be the following:

yaml
exporters:
  # Metrics + Events
  signalfx:
    access_token: "${SPLUNK_ACCESS_TOKEN}"
    #api_url: "${SPLUNK_API_URL}"
    #ingest_url: "${SPLUNK_INGEST_URL}"
    # Use instead when sending to gateway
    api_url: "http://${SPLUNK_GATEWAY_URL}:6060"
    ingest_url: "http://${SPLUNK_GATEWAY_URL}:9943"
    sync_host_metadata: true
    correlation:
  # Send to gateway
  otlp:
    endpoint: "${SPLUNK_GATEWAY_URL}:4317"
    tls:
      insecure: true

The others you can leave as they are, but they won’t be used, as you will see in the pipelines.

The pipeline changes (you can see the items commented out and uncommented out):

yaml
service:
  pipelines:
    traces:
      receivers: [jaeger, otlp, smartagent/signalfx-forwarder, zipkin]
      processors:
      - memory_limiter
      - batch
      - resourcedetection
      #- resource/add_environment
      #exporters: [sapm, signalfx]
      # Use instead when sending to gateway
      exporters: [otlp, signalfx]
    metrics:
      receivers: [hostmetrics, otlp, signalfx, smartagent/signalfx-forwarder]
      processors: [memory_limiter, batch, resourcedetection]
      #exporters: [signalfx]
      # Use instead when sending to gateway
      exporters: [otlp]
    metrics/internal:
      receivers: [prometheus/internal]
      processors: [memory_limiter, batch, resourcedetection]
      # When sending to gateway, at least one metrics pipeline needs
      # to use signalfx exporter so host metadata gets emitted
      exporters: [signalfx]
    logs/signalfx:
      receivers: [signalfx, smartagent/processlist]
      processors: [memory_limiter, batch, resourcedetection]
      exporters: [signalfx]
    logs:
      receivers: [fluentforward, otlp]
      processors:
      - memory_limiter
      - batch
      - resourcedetection
      #- resource/add_environment
      #exporters: [splunk_hec, splunk_hec/profiling]
      # Use instead when sending to gateway
      exporters: [otlp]

And finally we can add the SPLUNK_GATEWAY_URL in splunk-otel-collector.conf, for example:

SPLUNK_GATEWAY_URL=gateway.splunko11y.com

Then we can restart the collector:

sudo systemctl restart splunk-otel-collector.service

And check the status:

sudo systemctl status splunk-otel-collector.service

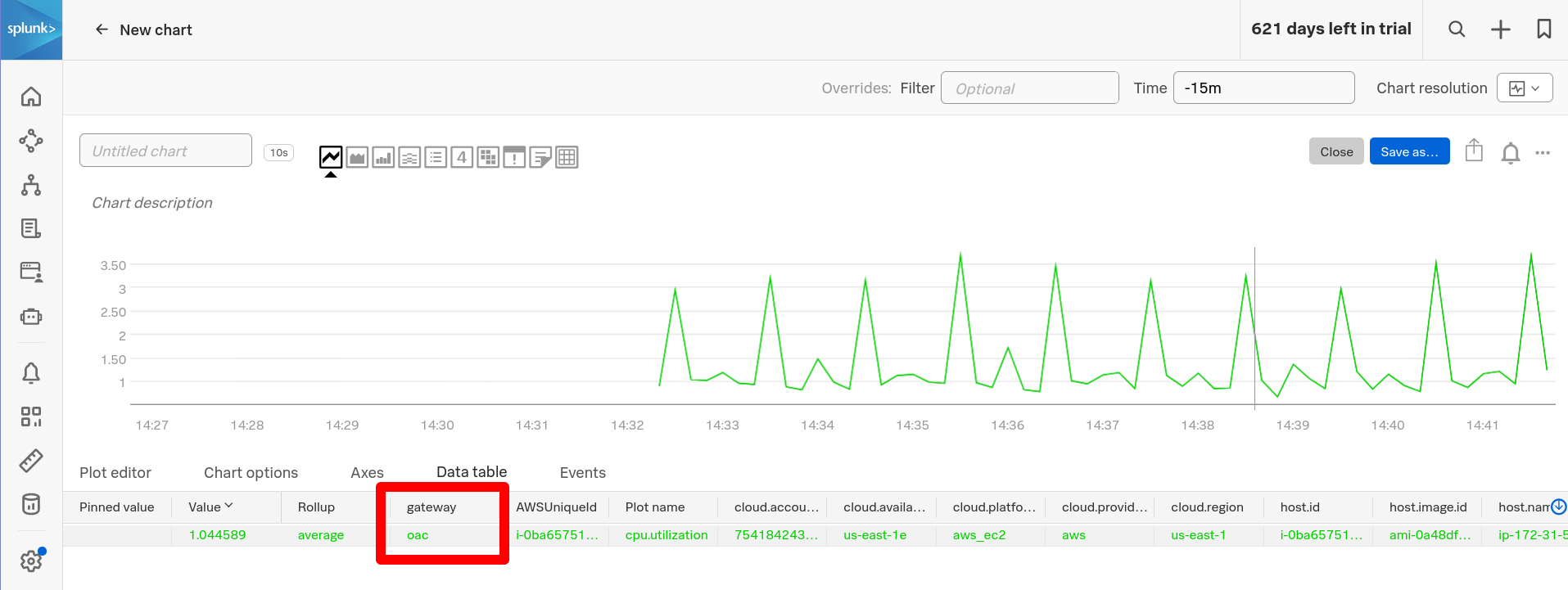

And finally see the new dimension on the metrics:
