Digital Experience (Synthetics)

3. Synthetics to APM

1 min

Exercise

Jump from Synthetics to APM

  • In the waterfall find an entry that starts with POST checkout. If you don’t see that, go back and select another failed run result from the Run results page.

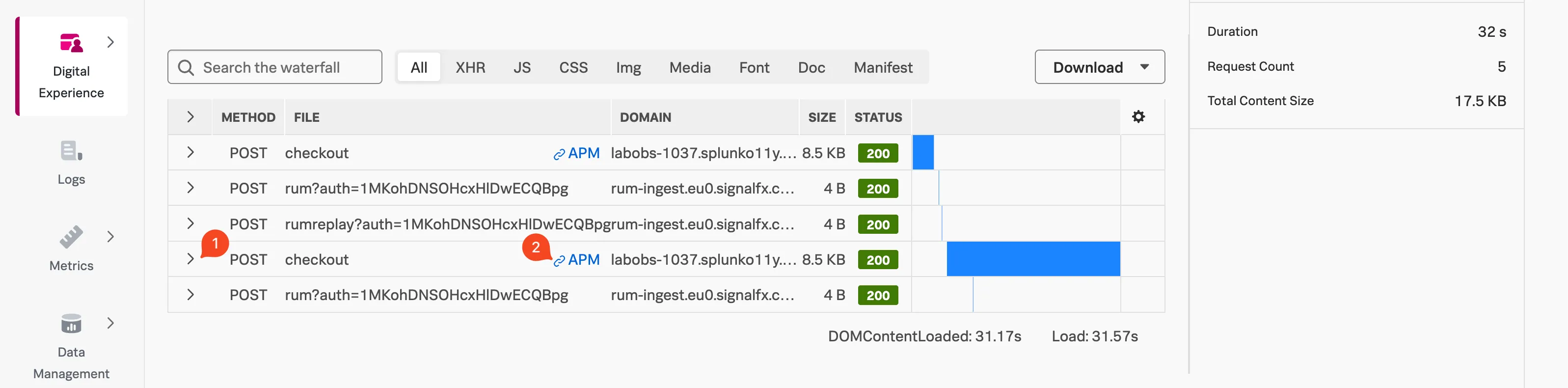

Place Order

  • Click on the > (1) to open the metadata section. Observe the metadata that is collected, and note the server-timing header under Response Headers. This header is what allows us to correlate the test run to a back-end trace.
  • Click on the blue APM (2) link on the POST checkout line in the waterfall.

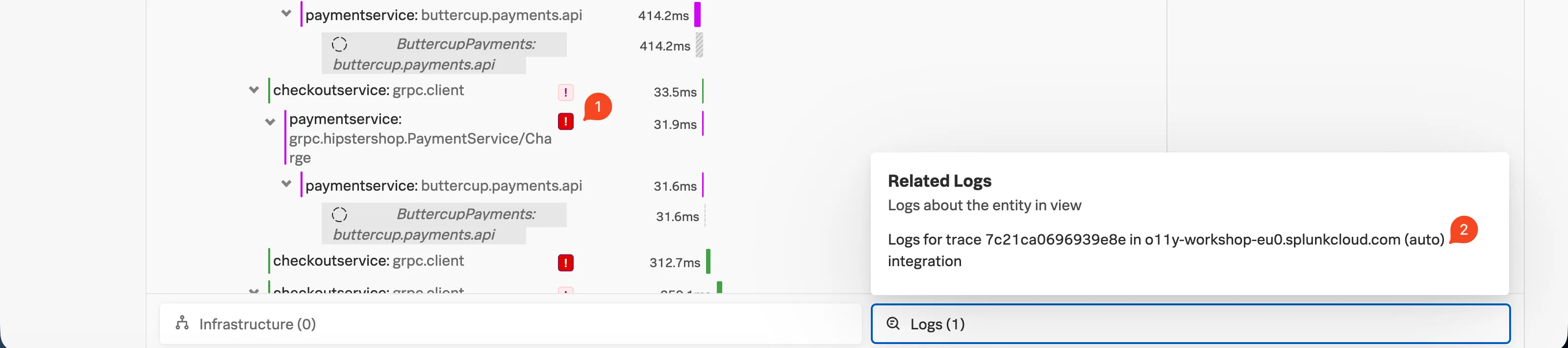

APM trace

  • Validate you see one or more errors for the paymentservice (1).
  • To validate that it’s the same error, click on the related content for Logs (2).
  • Repeat the earlier exercise to filter down to the errors only.
  • View the error log to validate the failed payment due to an invalid token.
