Deploying the OpenTelemetry Demo

1. Create a namespace

To not conflict with other workshops, we will deploy the OpenTelemetry Demo in a separate namespace called otel-demo. To create the namespace, run the following command:

kubectl create namespace otel-demo

2. Deploy the OpenTelemetry Demo

Next, change to the directory containing the OpenTelemetry Demo application:

cd ~/workshop/apm

Deploy the OpenTelemetry Demo application:

kubectl apply -n otel-demo -f otel-demo.yaml

serviceaccount/opentelemetry-demo created
service/opentelemetry-demo-adservice created
service/opentelemetry-demo-cartservice created
service/opentelemetry-demo-checkoutservice created
service/opentelemetry-demo-currencyservice created
service/opentelemetry-demo-emailservice created
service/opentelemetry-demo-featureflagservice created
service/opentelemetry-demo-ffspostgres created
service/opentelemetry-demo-frontend created
service/opentelemetry-demo-kafka created
service/opentelemetry-demo-loadgenerator created
service/opentelemetry-demo-paymentservice created
service/opentelemetry-demo-productcatalogservice created
service/opentelemetry-demo-quoteservice created
service/opentelemetry-demo-recommendationservice created
service/opentelemetry-demo-redis created
service/opentelemetry-demo-shippingservice created
deployment.apps/opentelemetry-demo-accountingservice created
deployment.apps/opentelemetry-demo-adservice created
deployment.apps/opentelemetry-demo-cartservice created
deployment.apps/opentelemetry-demo-checkoutservice created
deployment.apps/opentelemetry-demo-currencyservice created
deployment.apps/opentelemetry-demo-emailservice created
deployment.apps/opentelemetry-demo-featureflagservice created
deployment.apps/opentelemetry-demo-ffspostgres created
deployment.apps/opentelemetry-demo-frauddetectionservice created
deployment.apps/opentelemetry-demo-frontend created
deployment.apps/opentelemetry-demo-kafka created
deployment.apps/opentelemetry-demo-loadgenerator created
deployment.apps/opentelemetry-demo-paymentservice created
deployment.apps/opentelemetry-demo-productcatalogservice created
deployment.apps/opentelemetry-demo-quoteservice created
deployment.apps/opentelemetry-demo-recommendationservice created
deployment.apps/opentelemetry-demo-redis created
deployment.apps/opentelemetry-demo-shippingservice created

Once the application is deployed, we need to wait for the pods to be in a Running state. To check the status of the pods, run the following command:

kubectl get pods -n otel-demo

NAME                                                        READY   STATUS    RESTARTS   AGE
opentelemetry-demo-emailservice-847d6fb577-bxll6            1/1     Running   0          40s
opentelemetry-demo-ffspostgres-55f65465dd-2gsj4             1/1     Running   0          40s
opentelemetry-demo-adservice-5b7c68859d-5hx5f               1/1     Running   0          40s
opentelemetry-demo-currencyservice-c4cb78446-qsd68          1/1     Running   0          40s
opentelemetry-demo-frontend-5d7cdb8786-5dl76                1/1     Running   0          39s
opentelemetry-demo-kafka-79868d56d8-62wsd                   1/1     Running   0          39s
opentelemetry-demo-paymentservice-5cb4ccc47c-65hxl          1/1     Running   0          39s
opentelemetry-demo-productcatalogservice-59d955f9d6-xtnjr   1/1     Running   0          38s
opentelemetry-demo-loadgenerator-755d6cd5b-r5lqs            1/1     Running   0          39s
opentelemetry-demo-quoteservice-5fbfb97778-vm62m            1/1     Running   0          38s
opentelemetry-demo-redis-57c49b7b5b-b2klr                   1/1     Running   0          37s
opentelemetry-demo-shippingservice-6667f69f78-cwj8q         1/1     Running   0          37s
opentelemetry-demo-recommendationservice-749f55f9b6-5k4lc   1/1     Running   0          37s
opentelemetry-demo-featureflagservice-67677647c-85xtm       1/1     Running   0          40s
opentelemetry-demo-checkoutservice-5474bf74b8-2nmns         1/1     Running   0          40s
opentelemetry-demo-frauddetectionservice-77fd69d967-lnjcg   1/1     Running   0          39s
opentelemetry-demo-accountingservice-96d44cfbc-vmtzb        1/1     Running   0          40s
opentelemetry-demo-cartservice-7c4f59bdd5-rfkf4             1/1     Running   0          40s

3. Validate the application is running

To validate the application is running, we will port-forward the frontend service. To do this, run the following command:

kubectl port-forward svc/opentelemetry-demo-frontend 8083:8080 -n otel-demo --address='0.0.0.0'

Obtain the public IP address of the instance you are running on. You can do this by running the following command:

curl ifconfig.me

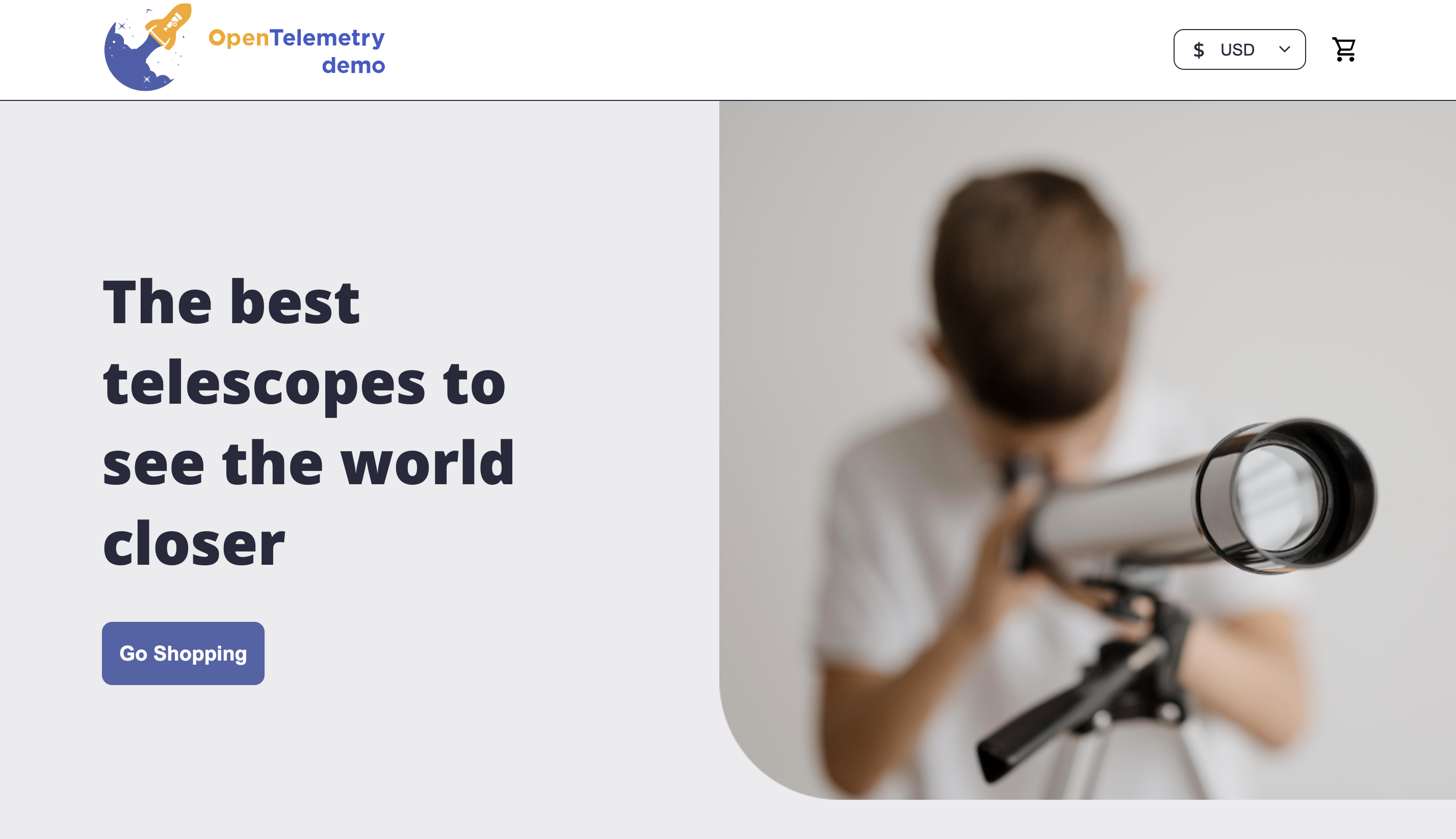

Once the port-forward is running, you can access the application by opening a browser and navigating to http://<public IP address>:8083. You should see the following:

Once you have confirmed the application is running, you can close the port-forward by pressing ctrl + c.

Next, we will deploy the OpenTelemetry Collector.
