Zero Configuration - Frontend Service

1. Patching the Frontend service

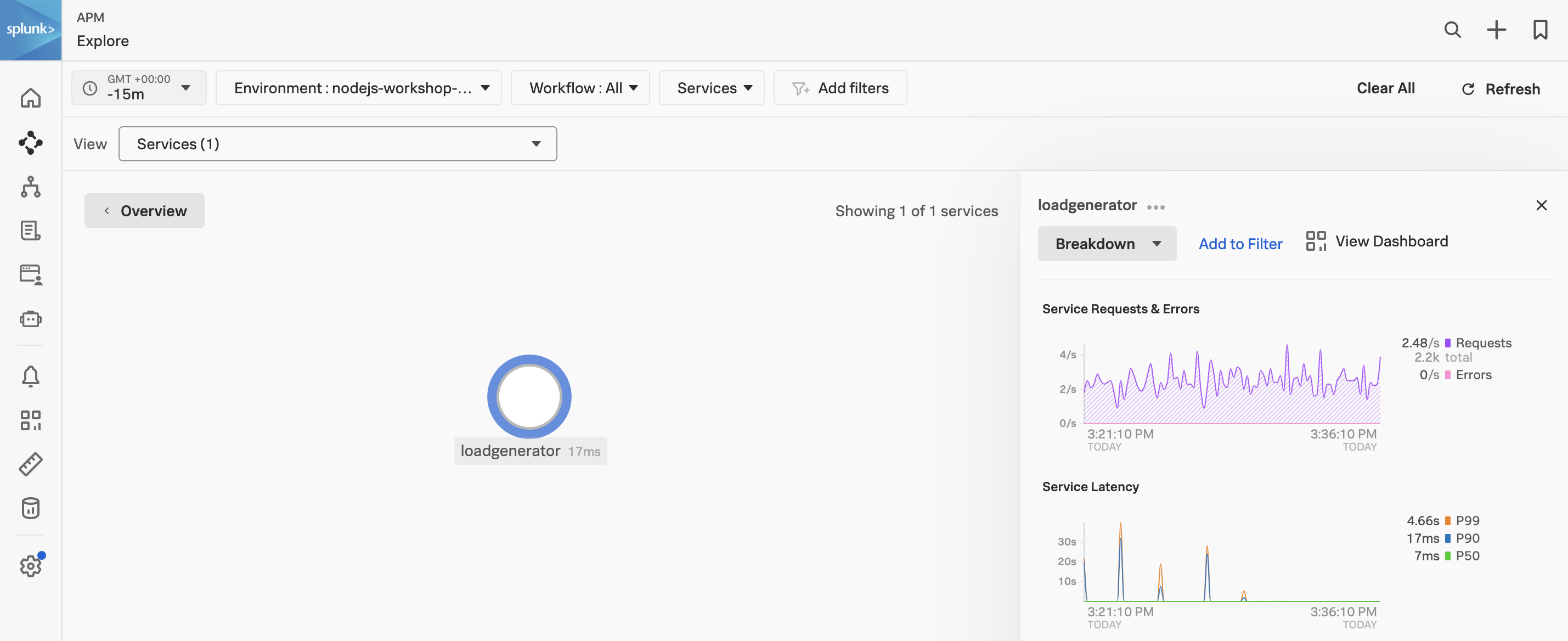

First, confirm that you can see your environment in APM. There should be a service called loadgenerator displayed in the Service map.

APM Service Map APM Service Map

Next, we will patch the frontend deployment with an annotation to inject the NodeJS auto instrumentation. This will allow us to see the frontend service in APM. Note, that at this point we have not edited any code.

kubectl patch deployment opentelemetry-demo-frontend -n otel-demo -p '{"spec": {"template":{"metadata":{"annotations":{"instrumentation.opentelemetry.io/inject-nodejs":"default/splunk-otel-collector"}}}} }'
  • This will cause the opentelemetry-demo-frontend pod to restart.
  • The annotation value default/splunk-otel-collector refers to the instrumentation configuration named splunk-otel-collector in the default namespace.
  • If the chart is not installed in the default namespace, modify the annotation value to be {chart_namespace}/splunk-otel-collector.

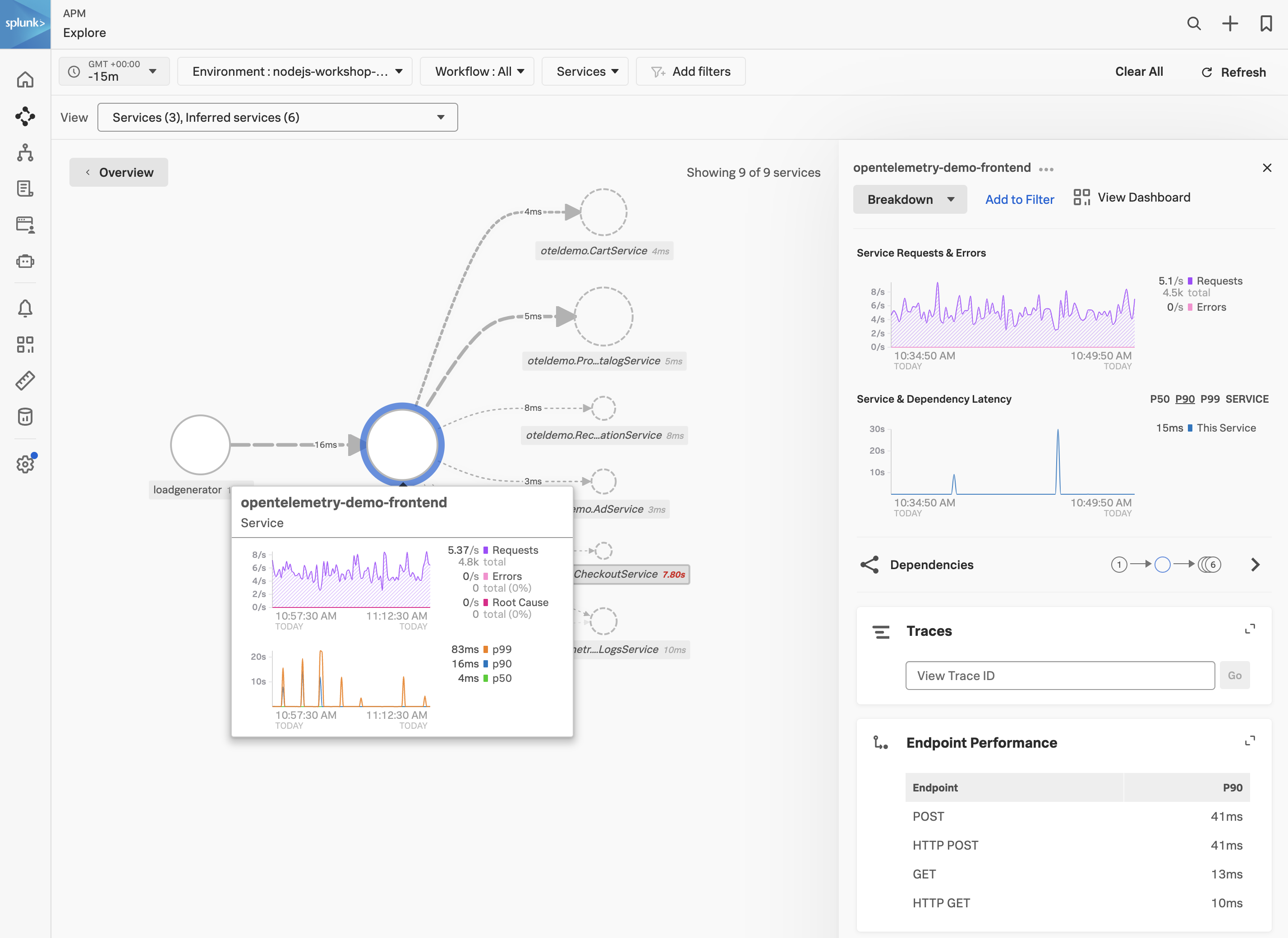

After a few minutes, you should see the frontend service in APM.

Frontend Frontend

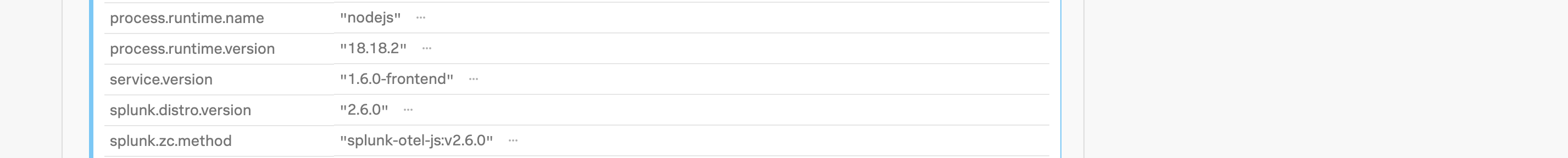

With the frontend service highlighted, click on the Traces tab to see the traces for the service. Select one of the traces and confirm that the trace contains metadata confirming that the Splunk Zero-Configuration Auto-Instrumentation for NodeJS is being used.

Zero Configuration Zero Configuration
