Installing the OpenTelemetry Collector

1. Introduction

helm delete splunk-otel-collector

2. Confirm environment variables

To ensure your instance is configured correctly, we need to confirm that the required environment variables for this workshop are set correctly. In your terminal run the following command:

env

In the output check the following environment variables are present and have values set:

ACCESS_TOKEN
REALM
RUM_TOKEN
HEC_TOKEN
HEC_URL

For this workshop, all of the above are required. If any are missing, please contact your instructor.

3. Install the OpenTelemetry Collector

We can then go ahead and install the Collector. Some additional parameters are passed to the helm install command, they are:

• --set="operator.enabled=true" - Enabled the Splunk OpenTelemetry Collector Operator for Kubernetes.
• --set="splunkObservability.profilingEnabled=true" - Enables CPU/Memory profiling for supported languages.

helm repo add splunk-otel-collector-chart https://signalfx.github.io/splunk-otel-collector-chart && helm repo update

helm install splunk-otel-collector --version 0.136.0 \
--set="operatorcrds.install=true", \
--set="operator.enabled=true", \
--set="splunkObservability.realm=$REALM" \
--set="splunkObservability.accessToken=$ACCESS_TOKEN" \
--set="clusterName=$INSTANCE-k3s-cluster" \
--set="logsEngine=otel" \
--set="splunkObservability.profilingEnabled=true" \
--set="environment=$INSTANCE-workshop" \
--set="splunkPlatform.endpoint=$HEC_URL" \
--set="splunkPlatform.token=$HEC_TOKEN" \
--set="splunkPlatform.index=splunk4rookies-workshop" \
splunk-otel-collector-chart/splunk-otel-collector \
-f ~/workshop/k3s/otel-collector.yaml

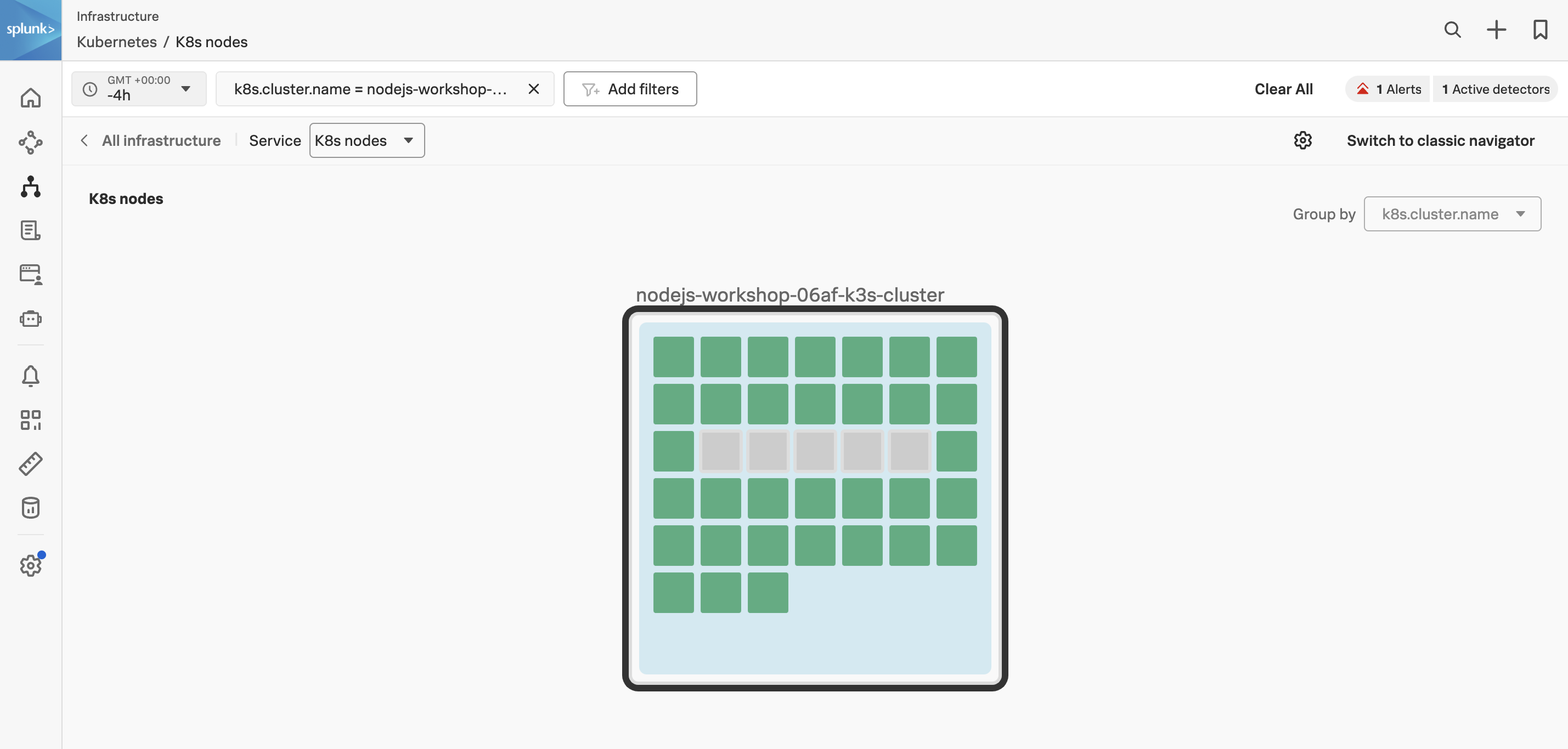

Once the installation is completed, you can navigate to the Kubernetes Navigator to see the data from your host.

Click on Add filters select k8s.cluster.name and select the cluster of your workshop instance. You can determine your instance name from the command prompt in your terminal session:

echo $INSTANCE

Once you see data flowing for your host, we are then ready to get started with the APM component.
