Planning

Splunk Connect for SNMP (SC4SNMP) is a solution that allows the customer to "get" data from network devices and appliances when a more feature-complete solution, such as the Splunk Universal Forwarder, is not available.

Architecture

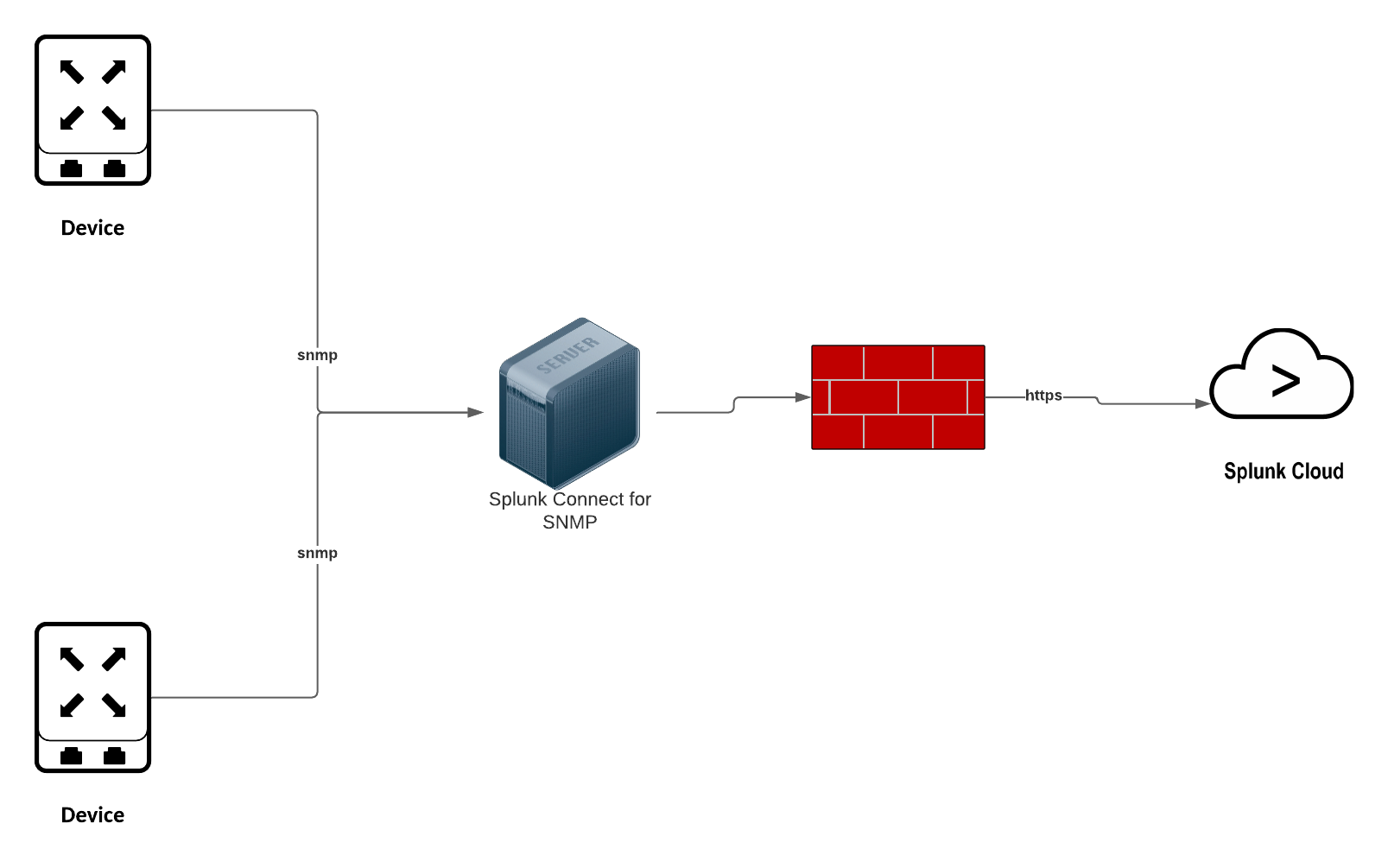

SC4SNMP is deployed using a Kubernetes distribution, typically MicroK8s, that’s designed to be a low-touch experience for integration with sensitive edge network devices. It will typically be deployed in the same network management zone as the monitored devices and separated from Splunk by an existing firewall.


Requirements

  • A supported deployment of MicroK8s

  • 16 Core/32 threads x64 architecture server or vm (single instance) 12 GB ram

  • HA Requires 3 or more instances (odd numbers) 8 core/16 thread 16 GB ram

  • 100 GB root mount

  • HTTP access (non-proxy) allowed for the HTTP(s) connection from SC4SNMP to the Splunk destination.

  • Splunk Enterprise/Cloud 8.x and or Splunk Infrastructure Monitoring (SignalFx)

  • Splunk Enterprise/Cloud specific Requirements:

    • Splunk ITSI or Splunk IT Work
    • Ability to create a HEC token
    • Ability to create event and metrics indexes (or use existing)

  • Splunk Infrastructure Monitoring specific requirements:

    • Ability to create or obtain real and token

Planning Infrastructure

A single installation of Splunk Connect for SNMP (SC4SNMP) on a machine with 16 Core/32 threads x64 and 12 GB ram will be able to handle up to 1300 SNMP TRAPs per sec.

A single installation of Splunk Connect for SNMP (SC4SNMP) on a machine with 16 Core/32 threads x64 and 64 GB ram will be able to handle up to 1300 SNMP GETs per sec.

When planning infrastructure for Splunk Connect for SNMP, (SC4SNMP) note the limitations highlighted above.
