Overview

Genesys Cloud Terraform Module for Splunk

Terraform module for Genesys Cloud to Splunk via AWS EventBridge.

This module allows users to extend the data collection provided by the Genesys Cloud Add-on for Splunk through the ingestion of additional events.

See Requirements and Use cases for more information and getting started with the integration.

Requirements

• Terraform

• A Genesys Cloud organization accessible via OAuth Client (Client Credentials) with master admin role

  Instructions

• An AWS account with permissions to access the following services:

  • AWS Identity and Access Management (IAM)
  • AWS S3 (for backup purposes)
  • AWS Kinesis
  • AWS EventBridge

• Splunk instance with either

  • the Splunk Add-on for Amazon Web Services (AWS) installed

    Documentation

  • the Splunk HTTP Event Collector (HEC) configured

    Instructions for Splunk Cloud Instructions for Enterprise

Use Cases Overview

This module supports three different types of deployment:

1. Configure and deploy via Kinesis.
2. Configure and deploy via S3.
3. Configure and deploy via HEC.

Each scenario has pros and cons, please decide the deployment depending on your requirements.

Integrate Genesys Cloud with Splunk HEC

Excluding AWS from the solution is (apparently) viable but consider that:

• Splunk and Genesys Cloud instances should be in close proximity i.e. running in the same continent. Otherwise you may experience latency, retransmissions, higher package loss

  AWS EventBridge retransmits events in case of failures..

• Splunk must be adequately sized to handle events spikes that could increase the load on the instance

Genesys Cloud Topics

By default this module configures Genesys Cloud to monitor the following list of topics:

Topic	Description
v2.operations.events.{id}	Operational events from various services
v2.users.{id}.persistentconnection	Notifications for changes in a user’s persistent connection state.
v2.analytics.conversation.{id}.metrics	Topic for analytics conversation metrics
v2.users.{id}.activity	Notification for changes to routing, presence, out of office, and active queues for a queue member
v2.users.{id}.geolocation	Notifications for changes in a user’s persistent connection state.
v2.users.{id}.routingStatus	Raised when the routing status of a user is changed.
v2.conversations.{id}.transcription	Notification containing conversation transcripts.
v2.detail.events.conversation.{id}.acd.end	Topic for analytics detail event type: AcdEndEvent.
v2.detail.events.conversation.{id}.acd.start	Topic for analytics detail event type: AcdStartEvent.
v2.detail.events.conversation.{id}.acw	Topic for analytics detail event type: AfterCallWorkEvent containing agent wrapups.
v2.detail.events.conversation.{id}.attributes	Topic for analytics detail event type: AttributeUpdateEvent.
v2.detail.events.conversation.{id}.contact	Topic for analytics detail event type: ContactUpdateEvent.
v2.detail.events.conversation.{id}.customer.end	Topic for analytics detail event type: CustomerEndEvent.
v2.detail.events.conversation.{id}.customer.start	Topic for analytics detail event type: CustomerStartEvent.
v2.detail.events.conversation.{id}.flow.end	Topic for analytics detail event type: FlowEndEvent.
v2.detail.events.conversation.{id}.flow.outcome	Topic for analytics detail event type: FlowOutcomeEvent.
v2.detail.events.conversation.{id}.flow.start	Topic for analytics detail event type: FlowStartEvent.
v2.detail.events.conversation.{id}.outbound	Topic for analytics detail event type: OutboundInitEvent.
v2.detail.events.conversation.{id}.user.end	Topic for analytics detail event type: UserEndEvent.
v2.detail.events.conversation.{id}.user.start	Topic for analytics detail event type: UserStartEvent.
v2.detail.events.conversation.{id}.voicemail.end	Topic for analytics detail event type: VoicemailEndEvent.
v2.detail.events.conversation.{id}.voicemail.start	Topic for analytics detail event type: VoicemailStartEvent.
v2.detail.events.conversation.{id}.wrapup	Topic for analytics detail event type: WrapupEvent containing system wrapups.

A full list of available topics can be found here. Please select the Event Bridge checkbox to filter the supported topics.

Advanced Configuration

To add / remove topics from the configuration, please edit the variable topic_filters in variables.tf. This configuration will be applied to all use case scenarios.

To configure only a specific use case, edit the examples/<your_use_case>/main.tf as shown below.

module "main" {
    source = "../.."
    aws_account_region = "eu-west-2"
    <!-- Update the Genesys Cloud topics to monitor -->
    topic_filters = [
        "v2.routing.queues.{id}.users"
    ]
}

Please note these values will override their own definition in variables.tf.

Ended: Overview

GettingStarted

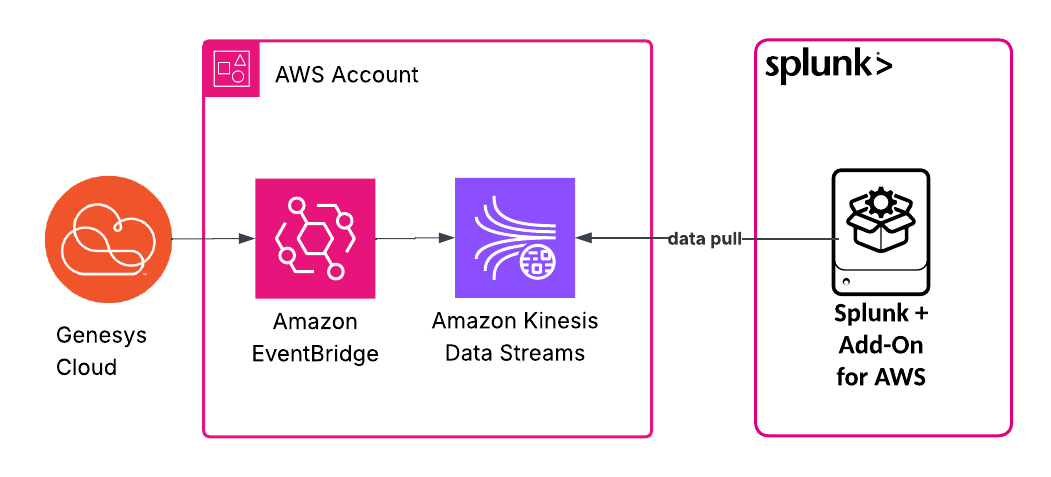

Configure and Deploy via Kinesis

Set the Environment Variables

Clone the repository and execute:

$~ cd examples/kinesis
$~ cp .env-example .env
# Add your values to the required variables
$~ vi .env
# Load the environment variables
$~ source .env

Clone a GitHub Repo

Configure the Integration

Edit examples/kinesis/main.tf as explained below

module "main" {
    source = "../.."
    <!-- Set the AWS Account Region field to match youre region -->
    aws_account_region = "eu-west-2"
}

Usage

# Initialize the terraform providers
$~ terraform init
# Preview the changes that terraform plans to make to your infrastructure
$~ terraform plan
# Deploy (--auto-approve to avoid being prompted to confirm the changes)
$~ terraform apply

Terraform CLI

Configure and Deploy via S3

Set the Environment Variables

Clone the repository and execute:

$~ cd examples/s3
$~ cp .env-example .env
# Add your values to the required variables
$~ vi .env
# Load the environment variables
$~ source .env

Clone a GitHub Repo

Configure the Integration

Edit examples/s3/main.tf as explained below

module "main" {
    source = "../.."
    <!-- Set the AWS Account Region field to match youre region -->
    aws_account_region = "eu-west-2"
    <!-- Set S3 bucket name. Must be unique within the specified AWS region -->
    s3_bucket_name = "test-bucket"
}

Usage

# Initialize the terraform providers
$~ terraform init
# Preview the changes that terraform plans to make to your infrastructure
$~ terraform plan
# Deploy (--auto-approve to avoid being prompted to confirm the changes)
$~ terraform apply

Terraform CLI

Configure and Deploy via HEC

To avoid losing data, the Splunk HTTP Event Collector (HEC) shall be already configured and ready to receive data.

Set the Environment Variables

Clone the repository and execute:

$~ cd examples/hec
$~ cp .env-example .env
# Add your values to the required variables
$~ vi .env
# Load the environment variables
$~ source .env

Clone a GitHub Repo

Configure the Deployment

Edit examples/hec/main.tf as explained below

module "main" {
    source = "../.."
    <!-- Set the AWS Account Region field to match your region -->
    aws_account_region = "eu-west-2"
    <!-- Set S3 bucket name. Must be unique within the specified AWS region. -->
    s3_bucket_name = "test-bucket"
    <!-- Set your Splunk URL -->
    splunk_url = "https://http-inputs-mydomain.splunkcloud.com:443"
    <!-- Set your Splunk HEC -->
    splunk_hec = "B5A79AAD-D822-46CC-80D1-819F80D7BFB0"
}

Usage

# Initialize the terraform providers
$~ terraform init
# Preview the changes that terraform plans to make to your infrastructure
$~ terraform plan
# Deploy (--auto-approve to avoid being prompted to confirm the changes)
$~ terraform apply

Terraform CLI

Ended: GettingStarted

Troubleshoot

Troubleshooting

• 409 error (BucketAlreadyExists)

• the name of the bucket terraform is trying to create is not unique within your AWS region set a different s3_bucket_name in variables.tf

• The script is stuck or you get a 403

  • there is a permission issue make sure you have set the environment variables by running source .env and that you have the required permissions to create the required resources in AWS

Ended: Troubleshoot
