Custom search commands are user-defined SPL (Splunk Search Processing Language) commands that enable users to add custom functionality to their Splunk searches.

There are 4 types of Custom search commands:

  • Generating
  • Streaming
  • Transforming
  • Dataset processing

Note: Currently UCC supports only three types of custom search command, that are Generating, Streaming and Dataset processing.

Note: Eventing commands are being referred as Dataset processing commands reference.

Generation of custom search command

A new tag has been introduced in globalConfig (same indent level as of meta tag) named customSearchCommand where you need to define the configuration for the custom search command.

Minimal definition

"customSearchCommand": [
    {
        "commandName": "mycommandname",
        "fileName": "mycommandlogic.py",
        "commandType": "generating",
        "arguments": [
            {
                "name": "argument_name",
                "validate": {
                    "type": "Fieldname"
                },
                "required": true
            },
            {
                "name": "argument_two"
            }
        ]
    }
]

This configuration will generate a template Python file named mycommandname.py, which imports logic from the mycommandlogic.py file and automatically updates the commands.conf file as shown below:

[mycommandname]
filename = mycommandname.py
chunked = true
python.version = python3

NOTE: If the file specified in the fileName field does not exist in the <YOUR_ADDON/bin> directory, the build will fail.

Attributes for customSearchCommand tag

Property Type Description
commandName* string Name of the custom search command
fileName* string Name of the Python file which contains logic of custom search command
commandType* string Specify type of custom search command. Three types of commands are allowed, streaming,generating and dataset processing.
arguments* array[objects] Arguments which can be passed to custom search command.
requiredSearchAssistant boolean Specifies whether search assistance is required for the custom search command. Default: false.
usage string Defines the usage of custom search command. It can be one of public, private and deprecated.
description string Provide description of the custom search command.
syntax string Provide syntax for custom search command

To generate a custom search command, the following attributes must be defined in globalConfig: commandName, commandType, fileName, and arguments. Based on the provided commandType, UCC will generate a template Python file and integrate the user-defined logic into it.

If requiredSearchAssistant is set to True, the syntax, description, and usage attributes are mandatory, as they are essential for generating searchbnf.conf file.

NOTE: The user-defined Python file must include specific functions based on the command type:

  • For Generating command, the Python file must include a generate function.
  • For Streaming command, the Python file must include a stream function.
  • For Dataset processing command, the Python file must include a transform function.

Arguments

Property Type Description
name* string Name of the argument
defaultValue string/number Default value of the argument.
required boolean Specify if the argument is required or not.
validate object Specify validation for the argument. It can be any of Integer, Float, Boolean, RegularExpression or FieldName.

UCC currently supports five types of validations provided by splunklib library:

  • IntegerValidator
    • you can optionally define minimum and maximum properties.
  • FloatValidator
    • you can optionally define minimum and maximum properties.
  • BooleanValidator
    • no additional properties required.
  • RegularExpressionValidator
    • no additional properties required.
  • FieldnameValidator
    • no additional properties required.

For more information, refer splunklib API docs

For example:

"arguments": [
    {
        "name": "count",
        "required": true,
        "validate": {
            "type": "Integer",
            "minimum": 1,
            "maximum": 10
        },
        "default": 5
    },
    {
        "name": "test",
        "required": true,
        "validate": {
            "type": "Fieldname"
        }
    },
    {
        "name": "percent",
        "validate": {
            "type": "Float",
            "minimum": "85.5"
        }

    }
]

Example

{
    "meta": {...}
    "customSearchCommand": [
        {
            "commandName": "generatetextcommand",
            "fileName": "generatetext.py",
            "commandType": "generating",
            "requiredSearchAssistant": true,
            "description": "This command generates COUNT occurrences of a TEXT string.",
            "syntax": "generatetextcommand count=<event_count> text=<string>",
            "usage": "public",
            "arguments": [
                {
                    "name": "count",
                    "required": true,
                    "validate": {
                        "type": "Integer",
                        "minimum": 5,
                        "maximum": 10
                    }
                },
                {
                    "name": "text",
                    "required": true
                }
            ]
        },
    ],
    "pages": {...}
}

Generated python file named generatetextcommand.py:

import sys
import import_declare_test

from splunklib.searchcommands import \
    dispatch, GeneratingCommand, Configuration, Option, validators
from generatetext import generate

@Configuration()
class GeneratetextcommandCommand(GeneratingCommand):
    """

    ##Syntax
    generatetextcommand count=<event_count> text=<string>

    ##Description
    This command generates COUNT occurrences of a TEXT string.

    """
    count = Option(name='count', require=True, validate=validators.Integer(minimum=5, maximum=10))
    text = Option(name='text', require=True)

    def generate(self):
       return generate(self)

dispatch(GeneratetextcommandCommand, sys.argv, sys.stdin, sys.stdout, __name__)

Generated stanza in commands.conf file

[generatetextcommand]
filename = generatetextcommand.py
chunked = true
python.version = python3

Generated stanza in searchbnf.conf file

[generatetextcommand]
syntax = generatetextcommand count=<event_count> text=<string>
description = This command generates COUNT occurrences of a TEXT string.
usage = public

Output

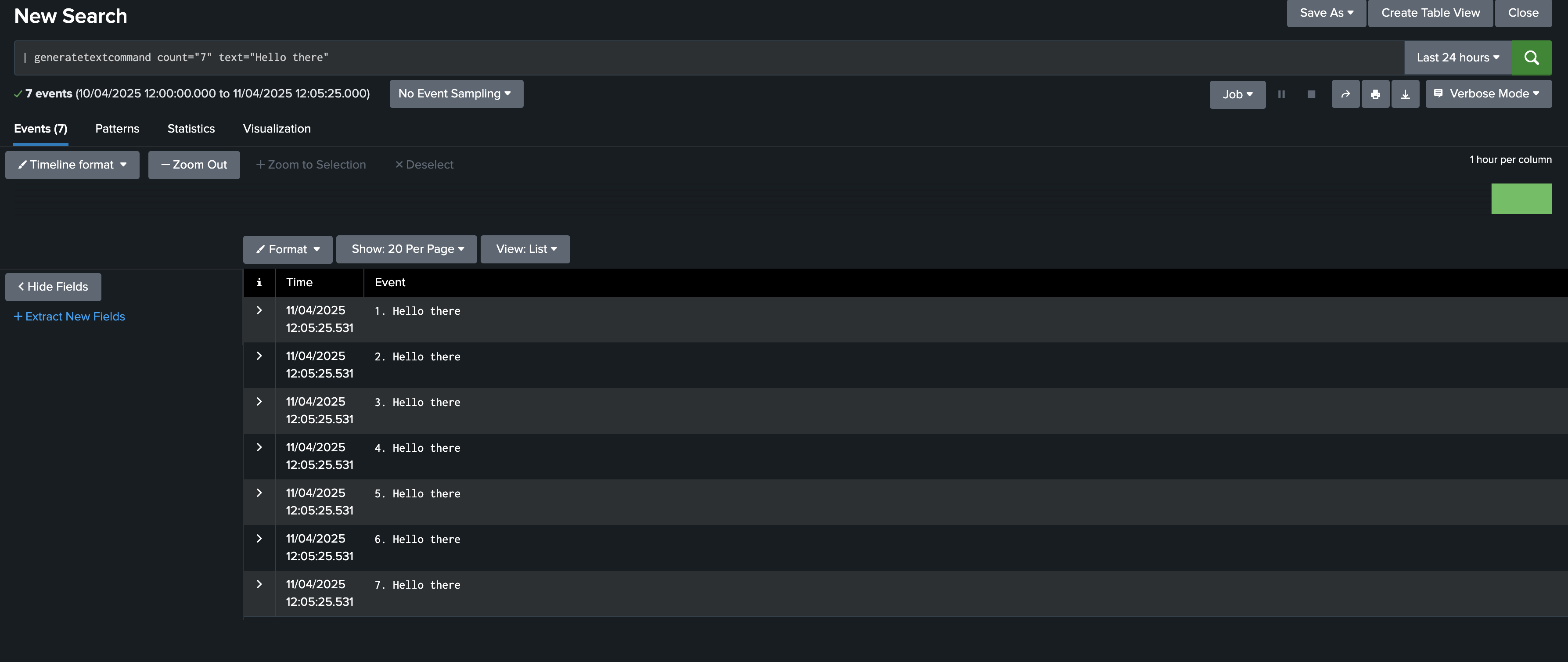

This is how search result looks like:
