Federated Search Setup Guide: LOCAL to REMOTE

This guide documents a validated SVA-C3 setup path where a LOCAL SearchHeadCluster searches indexes on a REMOTE SearchHeadCluster. The concrete examples in this document assume Azure Blob Storage for App Framework distribution and Ingress NGINX for the management path between clusters.

If you are not on Azure, use the manual deployment path or adapt the App Framework configuration to your object store. If you are not using Ingress NGINX, translate the ingress example and annotations to the equivalent configuration for your controller.

This guide covers standard mode federated search only. It does not cover transparent mode or mixed VM/Kubernetes federated-search topologies.

Architecture Overview
Prerequisites
REMOTE Cluster Setup
LOCAL Cluster Setup
Testing and Validation
Troubleshooting

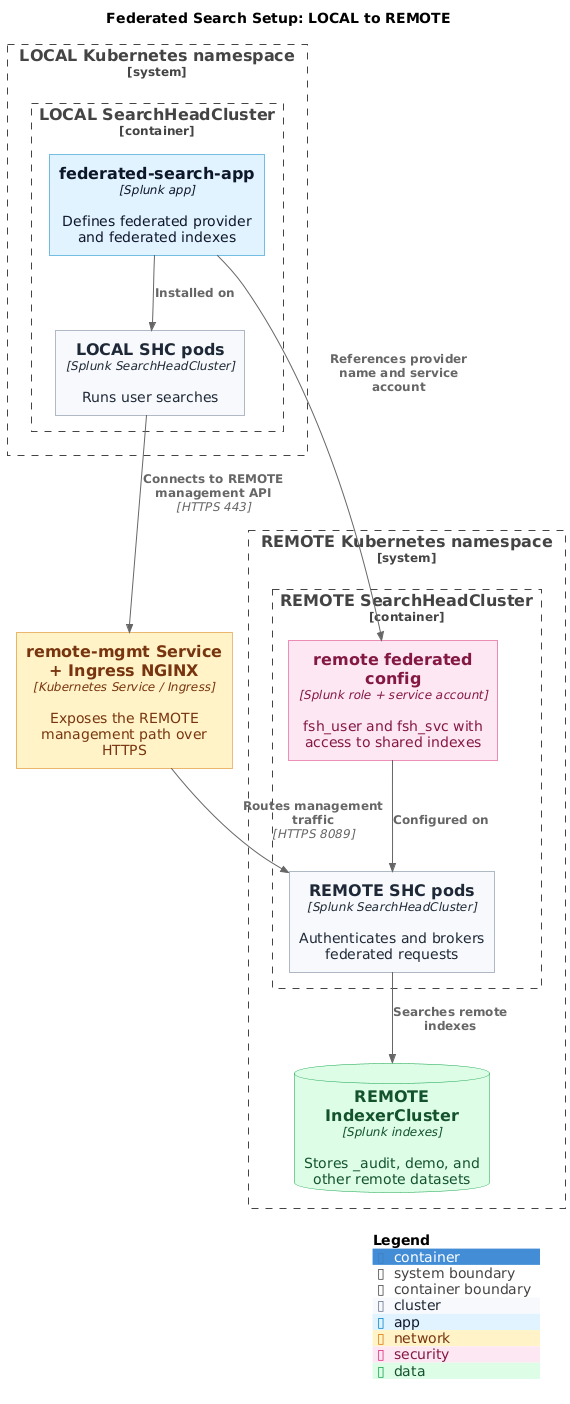

Architecture Overview

Diagram source: pictures/federated-search-setup-architecture.puml

Key Concepts

LOCAL SHC: The search head cluster where users run searches
REMOTE SHC: The search head cluster that provides access to remote data
Federated Provider: Configuration defining how to connect to the remote cluster
Federated Index: Virtual index that maps to a real index on the remote cluster
Service Account: Dedicated user (fsh_svc) for federated search authentication

Prerequisites

Infrastructure Requirements

Kubernetes cluster with Splunk Operator deployed
Two separate SearchHeadClusters (LOCAL and REMOTE)
IndexerClusters connected to both SHCs
Azure Blob Storage plus the required identity or secret configuration if you use the App Framework path
Direct access to the LOCAL SHC pods if you use the manual deployment path

Network Requirements

HTTPS connectivity between LOCAL and REMOTE SHCs
A Kubernetes service that exposes the REMOTE management endpoint inside the cluster
Ingress NGINX if you want to use the ingress manifests below without modification

Splunk Requirements

A Splunk Enterprise version supported by your Splunk Operator release
Federated search enabled on both clusters
Administrative access to both clusters

REMOTE Cluster Setup

The REMOTE cluster is the data source. We need to:

Select a target SHC pod and admin credentials
Create a role with appropriate index permissions
Create a service account for federated search
Expose the management API endpoint

Step 1: Select a REMOTE SHC Pod and Credentials

Do not assume search-head-0 is the captain. Captainship is dynamic and can change over time, so select a healthy pod at runtime instead of hardcoding an ordinal.

NAMESPACE="stos-auto"
REMOTE_POD=$(kubectl -n $NAMESPACE get pods \
  -l app.kubernetes.io/instance=splunk-remote-shc-search-head \
  -o jsonpath='{.items[0].metadata.name}')
REMOTE_ADMIN=$(kubectl -n $NAMESPACE get secret splunk-remote-shc-search-head-secret-v1 \
  -o jsonpath='{.data.password}' | base64 -d)

Replace stos-auto and remote-shc with the namespace and CR name from your environment before running the remaining commands.

Step 2: Create Federated Search Role

Create a role with access to the indexes you want to share:

# Create fsh_user role with access to every remote index you want to expose
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "admin:$REMOTE_ADMIN" \
  -X POST "https://localhost:8089/services/authorization/roles/fsh_user" \
  -d "srchIndexesAllowed=_audit,demo" \
  -d "srchIndexesDefault=_audit" \
  -d "imported_roles=user"

Important Index Permissions:

srchIndexesAllowed: Set this to the full comma-separated list of remote indexes the federated user can access
srchIndexesDefault: Default index for searches
When you update srchIndexesAllowed later, include the complete desired list again

Step 3: Create Service Account

Create a dedicated service account for federated authentication:

# Create fsh_svc service account with fsh_user role
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- \
  /opt/splunk/bin/splunk add user fsh_svc \
  -password 'SvcP@ssw0rd' \
  -role fsh_user \
  -auth "admin:$REMOTE_ADMIN"

Security Best Practices:

Use a strong, unique password
Store credentials securely (consider using Kubernetes secrets)
Rotate credentials regularly
Grant minimum required permissions

Step 4: Create Management API Service

Create an ExternalName service to expose the REMOTE SHC management endpoint:

# remote-mgmt-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: remote-mgmt
  namespace: stos-auto
spec:
  type: ExternalName
  externalName: ingress-nginx-controller.ingress-nginx.svc.cluster.local
  ports:
  - port: 443
    targetPort: 443
    protocol: TCP

Apply the service:

kubectl apply -f remote-mgmt-service.yaml

Step 5: Configure NGINX Ingress

Create an Ingress resource to route traffic to the REMOTE SHC:

# remote-mgmt-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: remote-mgmt-ingress
  namespace: stos-auto
  annotations:
    nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
    nginx.ingress.kubernetes.io/ssl-passthrough: "true"
spec:
  ingressClassName: nginx
  rules:
  - host: remote-mgmt.stos-auto.svc.cluster.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: splunk-remote-shc-search-head-service
            port:
              number: 8089

Apply the ingress:

kubectl apply -f remote-mgmt-ingress.yaml

Step 6: Verify REMOTE Setup

Test connectivity and authentication:

# Test service account authentication
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "fsh_svc:SvcP@ssw0rd" \
  "https://localhost:8089/services/server/info?output_mode=json" | \
  grep -o '"federated_search_enabled":[^,]*'

# Expected output: "federated_search_enabled":true

# Test search capability
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "fsh_svc:SvcP@ssw0rd" \
  -X POST "https://localhost:8089/services/search/jobs?output_mode=json" \
  -d "search=search index=_audit | head 1" \
  -d "exec_mode=oneshot"

# Should return search results without permission errors

LOCAL Cluster Setup

The LOCAL cluster is where searches are executed. We need to:

Create the federated provider configuration
Create federated index mappings
Select a target SHC pod and credentials
Deploy the configuration via AppFramework or manually

Step 1: Create Federated Search App Structure

mkdir -p federated-search-app/default
mkdir -p federated-search-app/metadata

Step 2: Create app.conf

cat > federated-search-app/default/app.conf << 'EOF'
[install]
is_configured = 1
state = enabled

[ui]
is_visible = 0
label = Federated Search Configuration

[launcher]
author = Splunk Admin
description = Federated search provider and index configurations
version = 1.0.0
EOF

Step 3: Create federated.conf

This defines the connection to the REMOTE cluster:

cat > federated-search-app/default/federated.conf << 'EOF'
# Federated Provider Configuration
[provider://remote_thru_nginx]
appContext = search
hostPort = remote-mgmt.stos-auto.svc.cluster.local:443
mode = standard
password = SvcP@ssw0rd
serviceAccount = fsh_svc
type = splunk
useFSHKnowledgeObjects = 0
EOF

Configuration Parameters:

appContext: The app context on the remote cluster (usually search)
hostPort: Remote cluster management endpoint (FQDN:port)
mode: standard (S2S) or transparent (forwarding)
password: Service account password
serviceAccount: Username on remote cluster
type: Always splunk for Splunk-to-Splunk federation
useFSHKnowledgeObjects: Use remote knowledge objects (0=false, 1=true)

Step 4: Create indexes.conf

This creates virtual federated indexes:

cat > federated-search-app/default/indexes.conf << 'EOF'
# Federated Index Configuration - Maps to REMOTE _audit index
[federated:r_audit]
federated.provider = remote_thru_nginx
federated.dataset = index:_audit

# Federated Index Configuration - Maps to REMOTE demo index
[federated:r_demo]
federated.provider = remote_thru_nginx
federated.dataset = index:demo
EOF

Configuration Parameters:

[federated:r_audit]: Local federated index name (use r_ prefix for remote)
federated.provider: References the provider name from federated.conf
federated.dataset: Specifies the remote index (index:<remote_index_name>)

Naming Convention:

Use federated:r_<indexname> for federated indexes
The r_ prefix indicates “remote”
Makes it clear which indexes are federated vs local

Step 5: Create default.meta

cat > federated-search-app/metadata/default.meta << 'EOF'
[]
access = read : [ * ], write : [ admin ]
export = system
EOF

Step 6: Set LOCAL Pod and Credentials

LOCAL_POD=$(kubectl -n $NAMESPACE get pods \
  -l app.kubernetes.io/instance=splunk-local-shc-search-head \
  -o jsonpath='{.items[0].metadata.name}')
LOCAL_ADMIN=$(kubectl -n $NAMESPACE get secret splunk-local-shc-search-head-secret-v1 \
  -o jsonpath='{.data.password}' | base64 -d)

The built-in admin role already includes the search capability. If you validate with a custom local role, verify that it has search plus access to the federated indexes defined in this app.

Step 7: Package and Deploy App

Option A: AppFramework on Azure (Validated path)

This is the Azure-specific path used for the validated SVA-C3 flow. If you use S3 or GCS instead, adapt the appRepo storage settings as described in App Framework. If you do not want to use a remote app repository, use Option B.

Package the app and upload to Azure Storage:

# Package the app
cd federated-search-app
tar czf ../federated-search-app_1.0.0.tgz .
cd ..

# Upload to Azure Storage (localApps path for LOCAL SHC)
az storage blob upload \
  --account-name splunkapps95484 \
  --container-name splunk-apps \
  --name "localApps/federated-search-app_1.0.0.tgz" \
  --file federated-search-app_1.0.0.tgz \
  --overwrite

Create or update LOCAL SHC with AppFramework configuration:

# local-shc-appframework.yaml
apiVersion: enterprise.splunk.com/v4
kind: SearchHeadCluster
metadata:
  name: local-shc
  namespace: stos-auto
spec:
  replicas: 3
  clusterManagerRef:
    name: local-cm
  serviceAccount: splunk-operator-sa
  appRepo:
    appsRepoPollInterval: 300
    defaults:
      volumeName: volume_app_repo
      scope: cluster
    appSources:
      - name: localApps
        location: localApps/
    volumes:
      - name: volume_app_repo
        storageType: azure
        provider: azure
        azureSecretRef: azure-blob-secret
        path: splunkapps95484/splunk-apps/

Apply the configuration:

kubectl apply -f local-shc-appframework.yaml

Option B: Manual Deployment

Copy the app directly to all LOCAL SHC pods:

for pod in $(kubectl -n $NAMESPACE get pods \
  -l app.kubernetes.io/instance=splunk-local-shc-search-head \
  -o jsonpath='{range .items[*]}{.metadata.name}{"\n"}{end}'); do
  kubectl -n $NAMESPACE cp -c splunk federated-search-app \
    "$pod:/opt/splunk/etc/apps/"
done

# Restart Splunk on all pods
kubectl -n $NAMESPACE delete pod -l app.kubernetes.io/instance=splunk-local-shc-search-head

Step 8: Wait for Deployment

If using AppFramework:

# AppFramework polls every 5 minutes by default
# Monitor the operator logs
kubectl -n splunk-operator logs -l control-plane=controller-manager -f | \
  grep -i "appframework\|download"

# Wait for SHC to stabilize
kubectl -n $NAMESPACE wait --for=condition=Ready --timeout=600s \
  pod -l app.kubernetes.io/instance=splunk-local-shc-search-head

Step 9: Verify LOCAL Configuration

# Check federated provider configuration
kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- \
  /opt/splunk/bin/splunk btool federated list provider://remote_thru_nginx

# Expected output should show all provider settings

# Check federated index configuration
kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- \
  /opt/splunk/bin/splunk btool indexes list federated:r_audit

# Expected output:
# [federated:r_audit]
# federated.dataset = index:_audit
# federated.provider = remote_thru_nginx

Testing and Validation

Test 1: Connectivity Test

Verify LOCAL can reach REMOTE management API:

kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- curl -sk \
  -u "fsh_svc:SvcP@ssw0rd" \
  "https://remote-mgmt.stos-auto.svc.cluster.local:443/services/server/info?output_mode=json" | \
  grep -o '"federated_search_enabled":[^,]*'

# Expected: "federated_search_enabled":true

Test 2: Direct Search on REMOTE

Verify data exists on the REMOTE cluster:

kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "fsh_svc:SvcP@ssw0rd" \
  -X POST "https://localhost:8089/services/search/jobs?output_mode=json" \
  -d "search=search index=_audit | stats count" \
  -d "exec_mode=oneshot"

# Should return count > 0

Test 3: Federated Search from LOCAL

Execute a federated search:

kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- curl -sk \
  -u "admin:$LOCAL_ADMIN" \
  -X POST "https://localhost:8089/services/search/jobs?output_mode=json" \
  -d "search=search index=federated:r_audit | head 10" \
  -d "exec_mode=oneshot"

Verify Results:

Results should contain data from REMOTE cluster
Look for the field: "splunk_federated_provider": "remote_thru_nginx"
The splunk_server field will show the REMOTE indexer names

Test 4: Statistics Across Federated Indexes

kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- curl -sk \
  -u "admin:$LOCAL_ADMIN" \
  -X POST "https://localhost:8089/services/search/jobs?output_mode=json" \
  -d "search=search index=federated:r_audit | stats count by sourcetype" \
  -d "exec_mode=oneshot"

Test 5: Splunk Web UI Test

# Port-forward to LOCAL SHC
kubectl -n $NAMESPACE port-forward svc/splunk-local-shc-search-head-service 8000:8000

# Get admin password
kubectl -n $NAMESPACE get secret splunk-local-shc-search-head-secret-v1 \
  -o jsonpath='{.data.password}' | base64 -d

# Open browser: http://localhost:8000
# Login with admin credentials
# Run search: index=federated:r_audit | stats count

Troubleshooting

Issue 1: “insufficient permission to access this resource”

Symptom: Search queries return permission errors

Cause: The federated service account role or the local user role is missing required search or index permissions. The built-in admin role already includes the search capability, so avoid editing the default admin role just to enable federated search.

Solution:

# Check the remote service-account role
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "admin:$REMOTE_ADMIN" \
  "https://localhost:8089/services/authorization/roles/fsh_user?output_mode=json" | \
  grep -E '"imported_roles"|"srchIndexesAllowed"'

# If you need to update remote index permissions, send the full allowed-index list
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "admin:$REMOTE_ADMIN" \
  -X POST "https://localhost:8089/services/authorization/roles/fsh_user" \
  -d "srchIndexesAllowed=_audit,demo" \
  -d "srchIndexesDefault=_audit" \
  -d "imported_roles=user"

Issue 2: Federated Provider Not Found

Symptom: {"messages":[{"type":"ERROR","text":"Not Found"}]}

Cause: App not deployed or Splunk not restarted

Solution:

# Check if app exists
kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- \
  ls /opt/splunk/etc/apps/federated-search-app

# Restart Splunk
kubectl -n $NAMESPACE delete pod -l app.kubernetes.io/instance=splunk-local-shc-search-head

Issue 3: Cannot Reach Remote SHC

Symptom: Connection timeouts or “Cannot reach remote SHC”

Cause: Service or ingress misconfiguration

Solution:

# Verify service exists
kubectl -n $NAMESPACE get svc remote-mgmt

# Verify ingress
kubectl -n $NAMESPACE get ingress

# Test connectivity from LOCAL pod
kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- \
  curl -sk "https://remote-mgmt.stos-auto.svc.cluster.local:443"

Issue 4: Authentication Failures

Symptom: “401 Unauthorized” or “Authentication failed”

Cause: Incorrect service account credentials

Solution:

# Verify service account exists on REMOTE
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- \
  /opt/splunk/bin/splunk list user -auth admin:<password> | grep fsh_svc

# Test authentication
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "fsh_svc:SvcP@ssw0rd" \
  "https://localhost:8089/services/authentication/current-context?output_mode=json"

Issue 5: No Data Returned

Symptom: Federated search returns 0 results

Possible Causes:

Index doesn’t exist on REMOTE cluster
No data in the remote index
fsh_user role doesn’t have permission to the index

Solution:

# Check if index exists on REMOTE
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- \
  /opt/splunk/bin/splunk list index -auth admin:<password> | grep _audit

# Verify fsh_user permissions
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "admin:<password>" \
  "https://localhost:8089/services/authorization/roles/fsh_user?output_mode=json" | \
  grep srchIndexesAllowed

# Test direct search on REMOTE as fsh_svc
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "fsh_svc:SvcP@ssw0rd" \
  -X POST "https://localhost:8089/services/search/jobs?output_mode=json" \
  -d "search=search index=_audit | stats count" \
  -d "exec_mode=oneshot"

Issue 6: AppFramework Not Deploying Apps

Symptom: Apps not appearing on LOCAL SHC after upload to Azure

Cause: Incorrect Azure permissions or path configuration

Solution:

# Check operator logs
kubectl -n splunk-operator logs -l control-plane=controller-manager --tail=100 | \
  grep -i "azure\|error"

# Verify SHC appSources configuration
kubectl -n $NAMESPACE get shc local-shc -o jsonpath='{.spec.appRepo.appSources[0].location}'

# Verify Azure blob exists
az storage blob list \
  --account-name splunkapps95484 \
  --container-name splunk-apps \
  --prefix localApps/

Performance Considerations

Search Performance

Federated searches are typically slower than local searches
Network latency affects performance
Consider using | stats and aggregations on the remote side

Optimization Tips

Use filters early: Apply index and time filters to reduce data transfer
```
index=federated:r_audit earliest=-1h | stats count by sourcetype
```
Leverage remote processing: Use streaming commands that execute on remote
```
index=federated:r_audit | stats count by host | sort -count
```
Avoid these commands: Some commands don’t work well with federated search
- transaction (runs locally)
- join (can be expensive)
- append with multiple federated sources

Connection Pooling

Splunk maintains connection pools to remote providers
Default pool size: 5 connections per provider

Configure in limits.conf if needed:

[federated_search]
max_concurrent_searches_per_provider = 5

Security Best Practices

Authentication

Use dedicated service accounts for federated search
Rotate passwords regularly
Consider using certificate-based authentication
Store credentials in Kubernetes secrets, not in plain text

Authorization

Grant minimum required index permissions
Use role-based access control (RBAC)
Audit federated search access logs
Restrict federated providers to specific roles

Network Security

Use HTTPS for all connections
Implement network policies in Kubernetes
Use private endpoints when possible
Enable SSL certificate validation in production

Monitoring

Monitor federated search performance
Track authentication failures
Alert on unusual access patterns
Review audit logs regularly

Maintenance

Updating Federated Configuration

To update the federated search configuration:

# Update the app files
cd federated-search-app

# Make changes to federated.conf or indexes.conf

# Re-package and upload
tar czf ../federated-search-app_1.0.1.tgz .
az storage blob upload \
  --account-name splunkapps95484 \
  --container-name splunk-apps \
  --name "localApps/federated-search-app_1.0.1.tgz" \
  --file ../federated-search-app_1.0.1.tgz \
  --overwrite

# AppFramework will auto-deploy within 5 minutes (default poll interval)

Password Rotation

# Update password on REMOTE cluster
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- \
  /opt/splunk/bin/splunk edit user fsh_svc \
  -password 'NewSecureP@ssw0rd' \
  -auth admin:<password>

# Update password in federated.conf on LOCAL cluster
# Re-deploy the app with new password

Adding New Federated Indexes

# 1. Update permissions on REMOTE with the full allowed-index list
kubectl -n $NAMESPACE exec $REMOTE_POD -c splunk -- curl -sk \
  -u "admin:<password>" \
  "https://localhost:8089/services/authorization/roles/fsh_user" \
  -d "srchIndexesAllowed=_audit,demo,new_index"

# 2. Add to indexes.conf on LOCAL
cat >> federated-search-app/default/indexes.conf << 'EOF'

[federated:r_new_index]
federated.provider = remote_thru_nginx
federated.dataset = index:new_index
EOF

# 3. Re-deploy the app

Include every remote index that the service account should keep, not just the new one.

Quick Reference Commands

Set Helper Variables

NAMESPACE="stos-auto"
LOCAL_POD=$(kubectl -n $NAMESPACE get pods \
  -l app.kubernetes.io/instance=splunk-local-shc-search-head \
  -o jsonpath='{.items[0].metadata.name}')

Get Admin Password

kubectl -n $NAMESPACE get secret splunk-local-shc-search-head-secret-v1 \
  -o jsonpath='{.data.password}' | base64 -d

Test Federated Search

kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- curl -sk \
  -u admin:<password> -X POST "https://localhost:8089/services/search/jobs?output_mode=json" \
  -d "search=search index=federated:r_audit | stats count" -d "exec_mode=oneshot"

Check Provider Config

kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- \
  /opt/splunk/bin/splunk btool federated list

Check Index Config

kubectl -n $NAMESPACE exec $LOCAL_POD -c splunk -- \
  /opt/splunk/bin/splunk btool indexes list | grep federated

Restart SHC Pods

kubectl -n $NAMESPACE delete pod -l app.kubernetes.io/instance=splunk-local-shc-search-head

Additional Resources

Support

For issues or questions:

Check the Troubleshooting section
Review Splunk logs: /opt/splunk/var/log/splunk/
Check operator logs: kubectl -n splunk-operator logs -l control-plane=controller-manager
Consult the Splunk community forums

Federated Search Setup Guide: LOCAL to REMOTE

Table of Contents

Architecture Overview

Key Concepts

Prerequisites

Infrastructure Requirements

Network Requirements

Splunk Requirements

REMOTE Cluster Setup

Step 1: Select a REMOTE SHC Pod and Credentials

Step 2: Create Federated Search Role

Step 3: Create Service Account

Step 4: Create Management API Service

Step 5: Configure NGINX Ingress

Step 6: Verify REMOTE Setup

LOCAL Cluster Setup

Step 1: Create Federated Search App Structure

Step 2: Create app.conf

Step 3: Create federated.conf

Step 4: Create indexes.conf

Step 5: Create default.meta

Step 6: Set LOCAL Pod and Credentials

Step 7: Package and Deploy App

Option A: AppFramework on Azure (Validated path)

Option B: Manual Deployment

Step 8: Wait for Deployment

Step 9: Verify LOCAL Configuration

Testing and Validation

Test 1: Connectivity Test

Test 2: Direct Search on REMOTE

Test 3: Federated Search from LOCAL

Test 4: Statistics Across Federated Indexes

Test 5: Splunk Web UI Test

Troubleshooting

Issue 1: “insufficient permission to access this resource”

Issue 2: Federated Provider Not Found

Issue 3: Cannot Reach Remote SHC

Issue 4: Authentication Failures

Issue 5: No Data Returned

Issue 6: AppFramework Not Deploying Apps

Performance Considerations

Search Performance

Optimization Tips

Connection Pooling

Security Best Practices

Authentication

Authorization

Network Security

Monitoring

Maintenance

Updating Federated Configuration

Password Rotation

Adding New Federated Indexes

Quick Reference Commands

Set Helper Variables

Get Admin Password

Test Federated Search

Check Provider Config

Check Index Config

Restart SHC Pods

Additional Resources

Support
