SC4S Lite

Purpose

SC4S Lite provides a scalable, performance-oriented solution for ingesting syslog data into Splunk. It’s pluggable modular parsers offer you the flexibility to incorporate custom data processing logic to suit specific use cases.

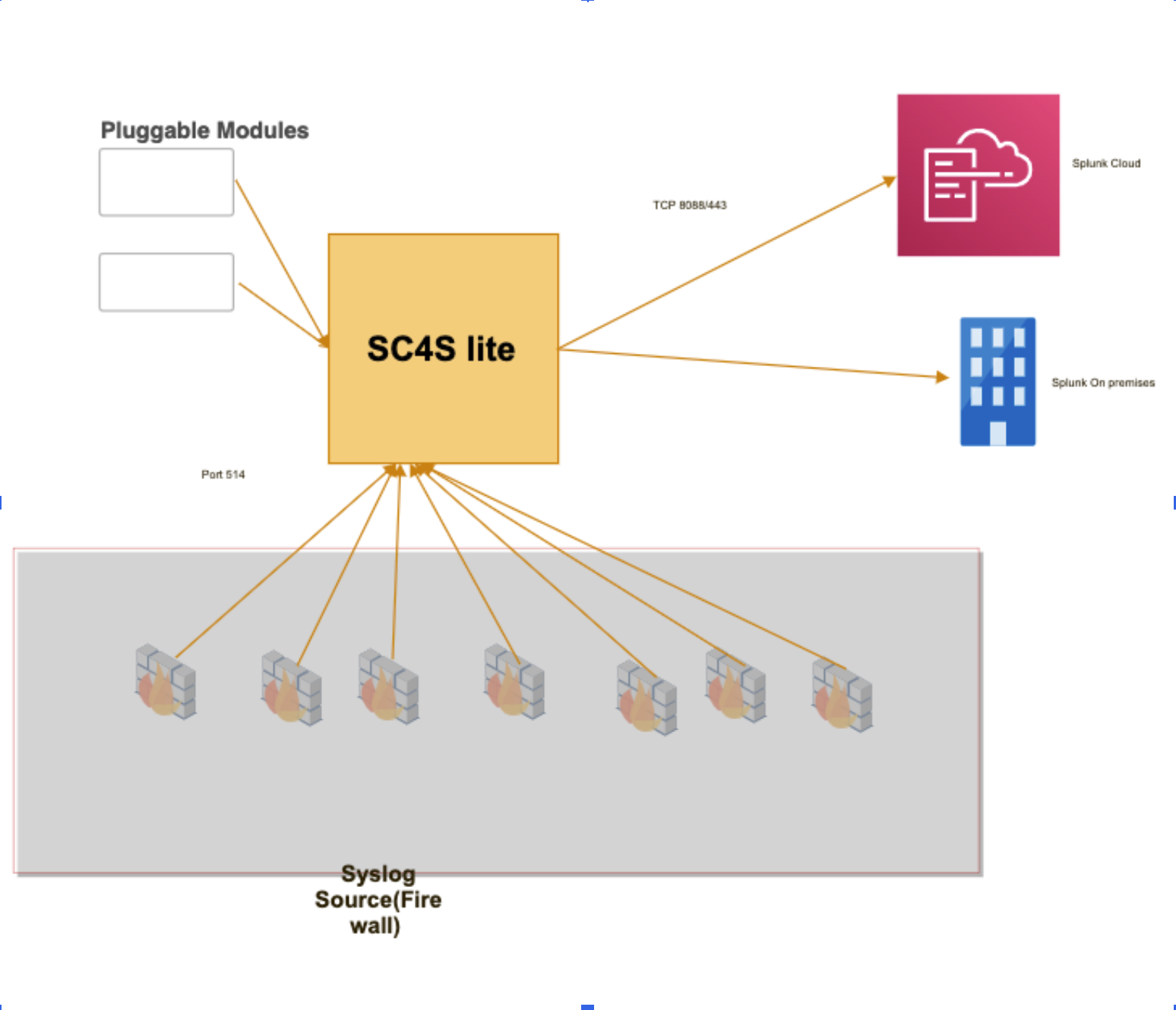

Architecture

architecture diagram

Components and Modules

SC4S Lite

SC4S Lite, which is built upon the Splunk Connect for Syslog (SC4S), provides a lightweight, high-performance SC4S solution.

Pluggable Modules

Pluggable modules are predefined modules that you can enable and disable through configuration files. Each pluggable module represents a set of parsers for each vendor that supports SC4S.

Note: you can only enable or disable modules, you cannnot create new modules or update existing ones.

For more information see

Splunk Enterprise or Splunk Cloud

You configure SC4S Lite to send syslog data to Splunk Enterprise or Splunk Cloud. The Splunk Platform provides comprehensive analysis, searching, and visualization of your processed data.

Data Flow

  1. Source systems send syslog data to SC4S Lite. The data may be transmitted using UDP, TCP, or RELP, depending on your system’s capabilities and configurations.
  2. SC4S Lite receives the syslog data and routes it through the appropriate parsers, as defined by you during configuration.
  3. The parsers in the pluggable module process the data, including parsing, filtering, and enriching the data with metadata.
  4. SC4S Lite forwards the processed syslog data to the Splunk platform over the HTTP Event Collector (HEC).

Security Considerations

SC4S Lite is built on an alpine lightweight container which has very little vulnerability. SC4S Lite supports secure syslog data transmission protocols such as RELP and TLS over TCP to protect your data in transit. Additionally, the environment in which SC4S Lite is deployed enhances data security.

Scalability and Performance

SC4S Lite provides superior performance and scalability thanks to the lightweight architecture and pluggable parsers, which distribute the processing load. It is also packaged with eBPF functionality to further enhance performance. Note that actual performance may depend on factors such as your server capacity and network bandwidth.

Implementation Plan

To implementat of SC4S Lite, you must:

  1. Set up the SC4S Lite environment.
  2. Install SC4S Lite following the instruction chosen environment. NOTE: In the service file (for podman or docker) replace references of standard container image (container2 or container3) with container3lite. For microk8s replace reference to standard image in values.yaml file.
  3. Configure source systems to send syslog data to SC4S Lite.
  4. Enable or disable your pluggable modules. By default all pluggable modules are enabled.
  5. Test the setup to ensure syslog data is correctly received, processed, and forwarded to Splunk.
